Multi-Circuits Measurement
Equipped with 3-in-1 CTs
Rated Current: 5A/100A/400A/600A
4G/WiFi/Ethernet/LoRa/LoRaWAN Comm.
Max. 4 Channels Three Phase or 12 Channels Single Phase
CE Certificated
RS485 Communication
Application: Apartment, Factory Production Line, School
+86-18702106858 / +86-21-69156352
Acrel ADW210 Multi Circuits Energy Meter is a highly versatile and advanced meter designed for efficient energy monitoring. It can support Wireless Communication (eg. 4G/WiFi/Ethernet/LoRa/LoRaWAN) by external module.
Equipped with 3 - in - 1 CTs, it supports multiple rated currents including 5A, 100A, 400A, and 600A, enabling flexible application in various scenarios and easily installed.
It can measure up to 4 channels of three - phase circuits or 12 channels of single - phase circuits simultaneously. With RS485 communication based on the Modbus - RTU protocol, it ensures reliable data transmission.
The device is CE certificated, guaranteeing safety and quality. It is widely applicable in apartments, factory production lines, schools, and other settings, providing precise and comprehensive energy monitoring. Its powerful functions and reliable performance make it an excellent choice for energy management.

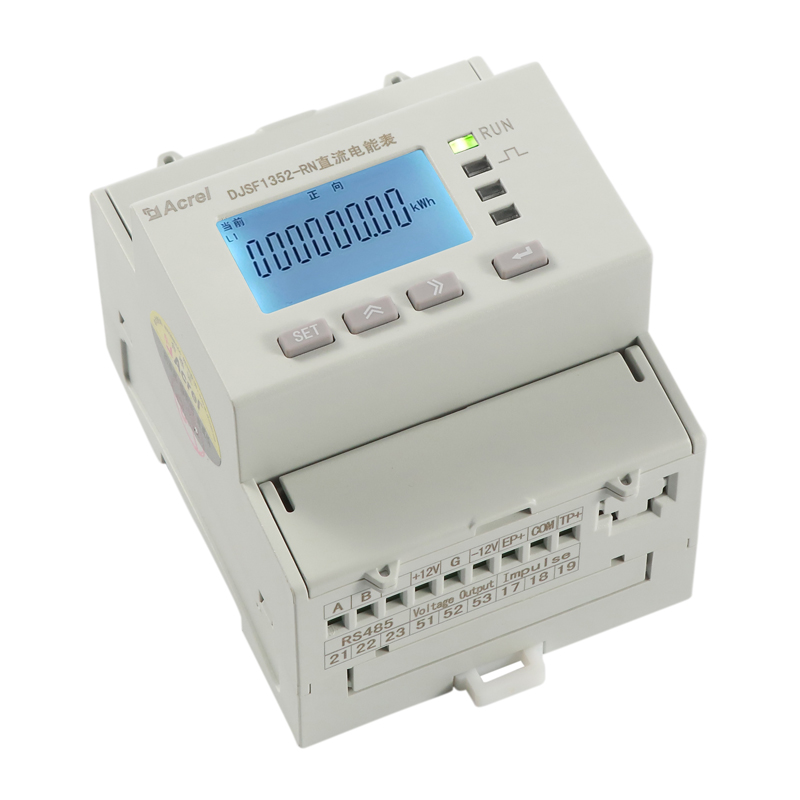

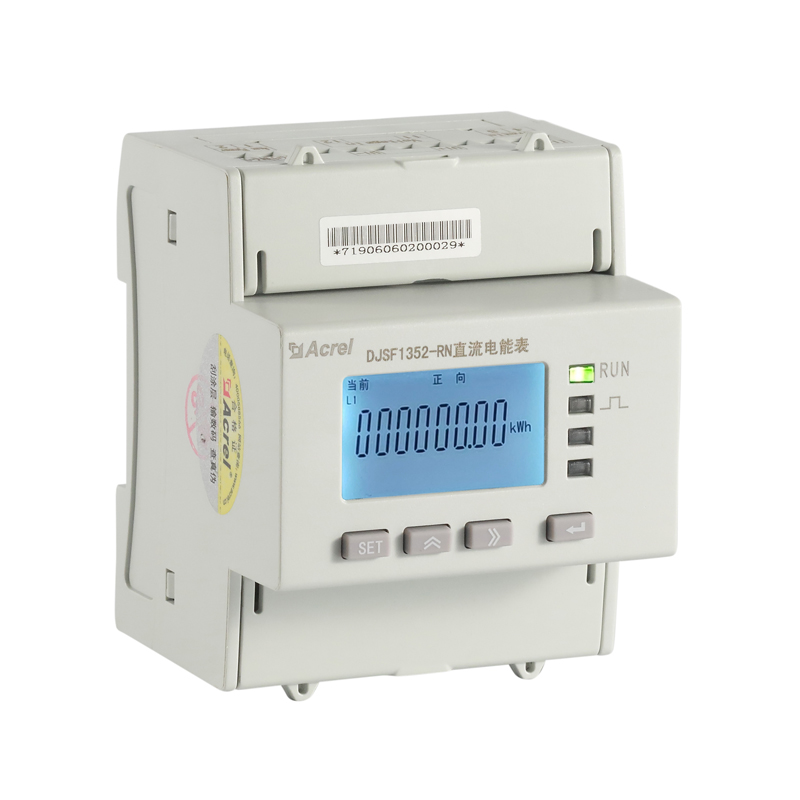

| Technical Parameters | Value | ||||
| Input | Nominal value | Rated Voltage | Rate Current | ||
| DC 0-1000V See the physical wiring diagram |
Shunt：0-75mV； | ||||
| Hall sensor：0-5V,100mA and so on. | |||||
| Overload | 1.2 times rated (continuous); 2 times rated/1 second; | ||||
| Power consumption | Voltage: ≤0.2VA, current ≤0.1VA | ||||
| Accuracy Class | Class 1 or Class 0.5 | ||||
| Function | Display | 8-bit segment LCD screen (LCD) | |||
| Communication Interface | RS485（Two Channels Option） | ||||
| Communication protocol | Modbus-RTU，DL/T 645-2007，DLT698 | ||||
| Switch | Switch output | 2 Relay outputs, 2A/30VDC or 2A/250VAC | |||
| Switch input | 2 dry contact inputs | ||||
| Pulse output | A second pulse output, a energy pulse output | ||||
| See the SYS->PLUS display in the meter menu settings. For example: The meter displays 100, which is 100imp/kWH | |||||
| Power Supply | Voltage range | AC/DC 85-265V or DC12V(±10%)or DC24V(±10%) or DC48V(±10%) | |||
| Power consumption | ≤ 3W | ||||
| Power frequency withstand voltage | Power supply // Signal input / / Other circuits 3.5kV/1min | ||||
| Other circuits not connected to each other except power supply and signal input 2kV/1min | |||||
| Impulse withstand voltage | ±6.5KV | ||||
| Insulation resistance | ≥ 40M Ω | ||||
| Average barrier-free working hours | ≥50000h | ||||
| Environment | Temperature | Normal operating temperature: -25 °C ~ +65 °C; Limit working temperature: -40 °C ~ +70 °C; | |||
| Storage temperature: -40℃～+80℃ | |||||
| Humidity | ≤93%RH, no condensation, no corrosive gas | ||||
| Altitude | ≤2500m | ||||
