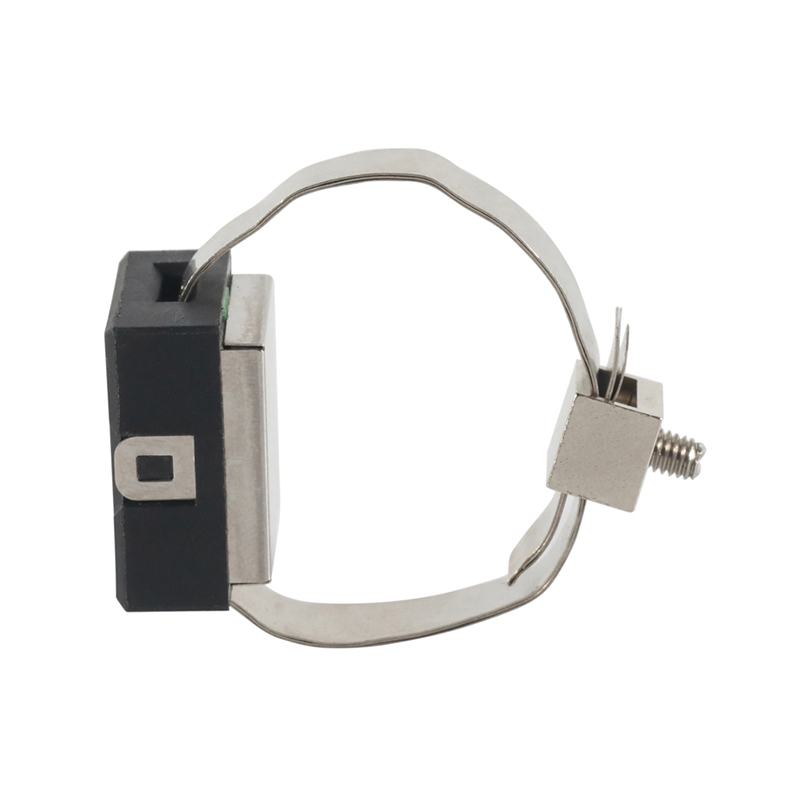

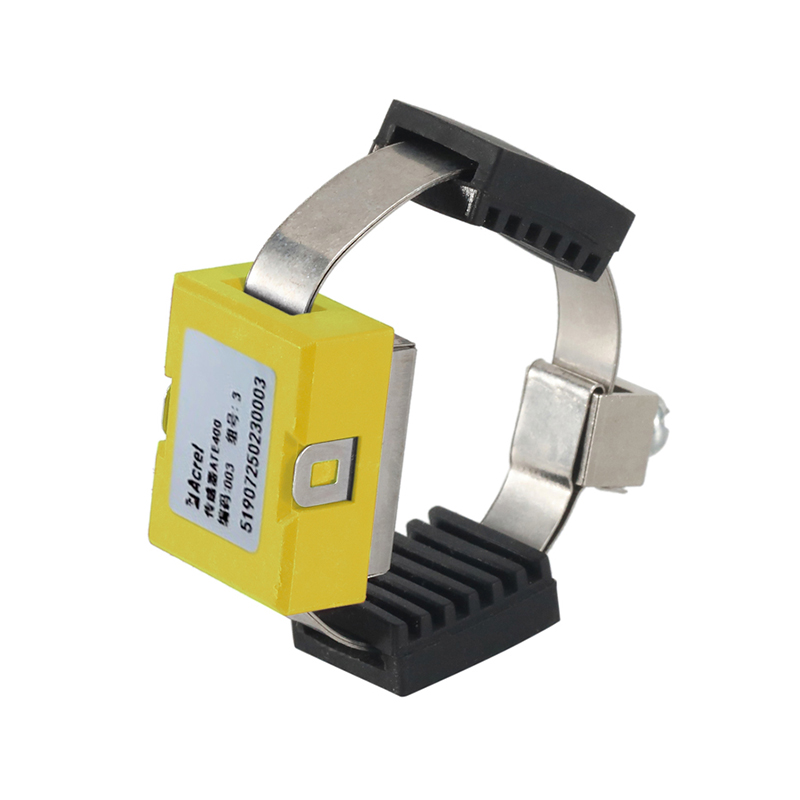

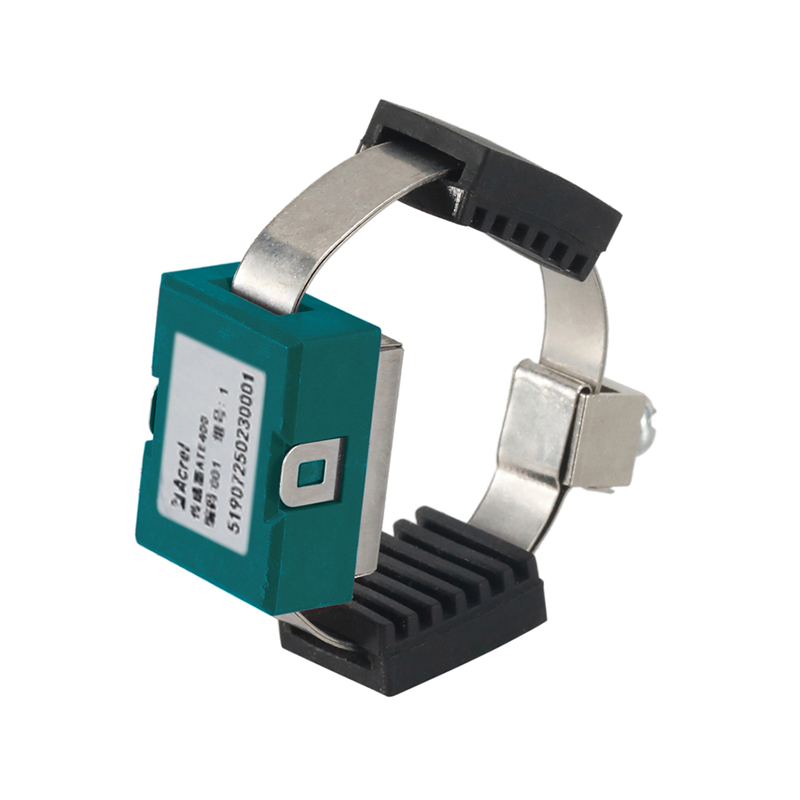

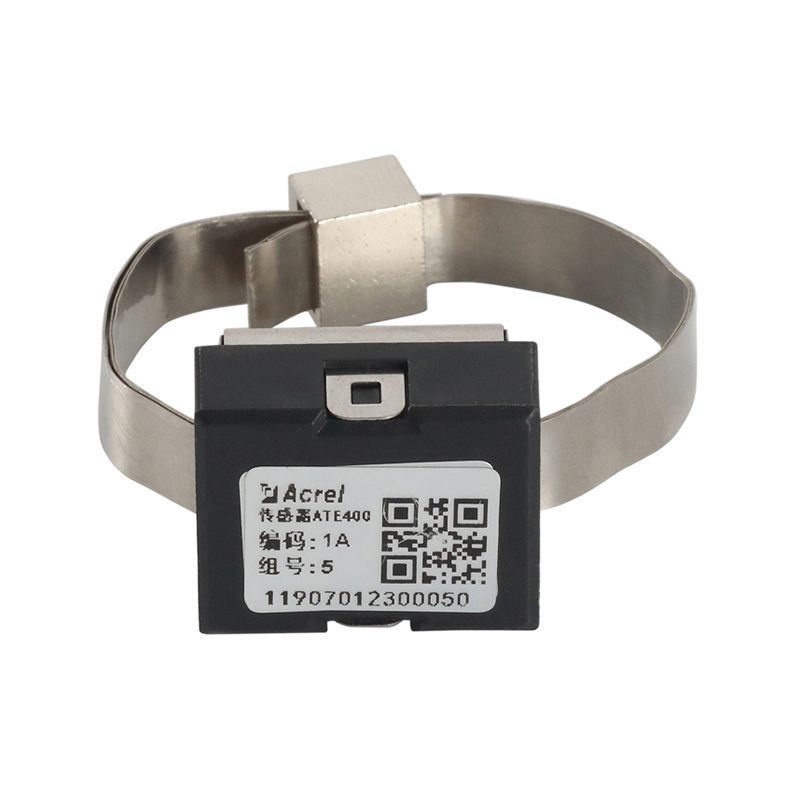

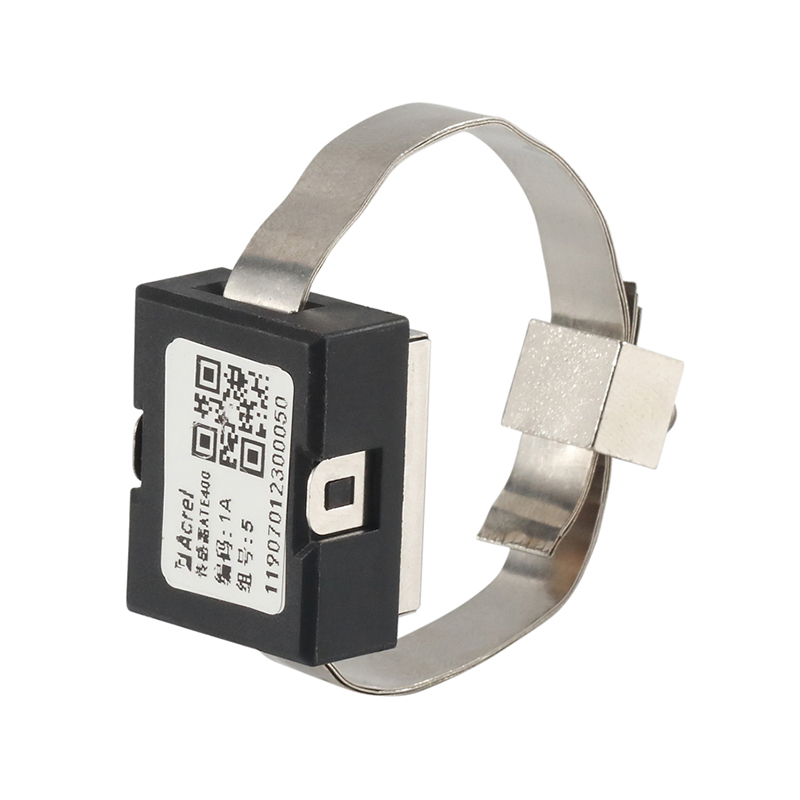

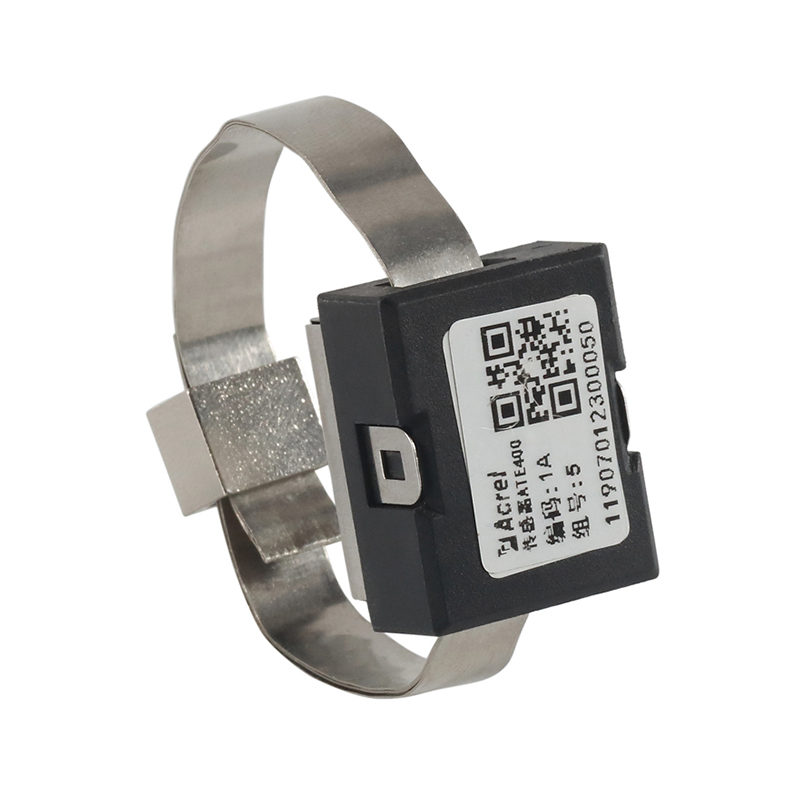

CT-powered, starting current≥5A
470MHz、433Mhz Wireless Frequency
15s Sampling frequency
15s Transmission frequency
-50℃~125℃ Temperature Range

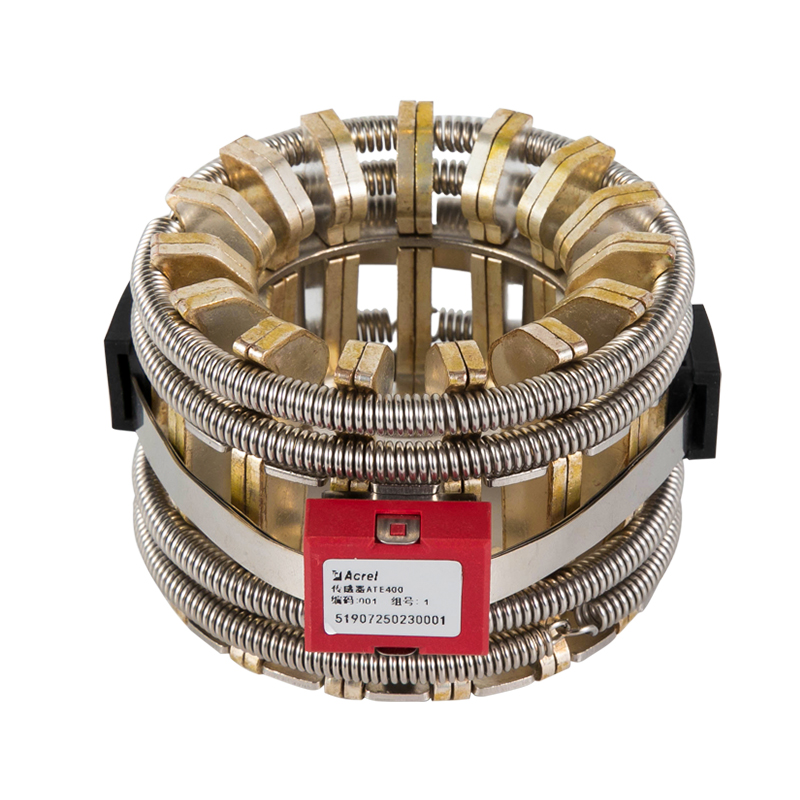

Application: cable joints/Busbars/Contacts in LV/HV Switchgear
+86-18702106858 / +86-21-69156352

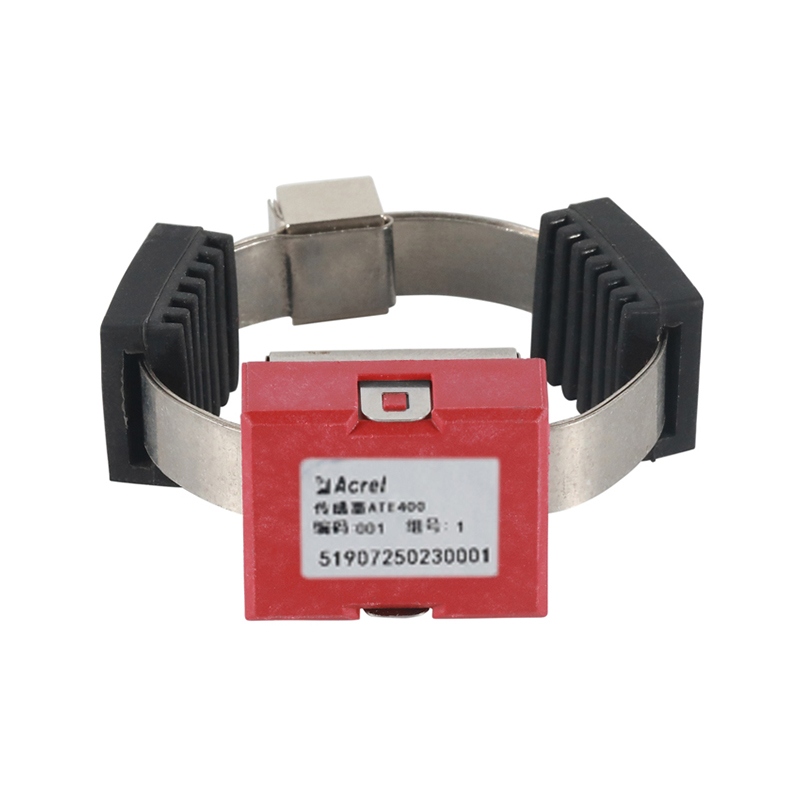

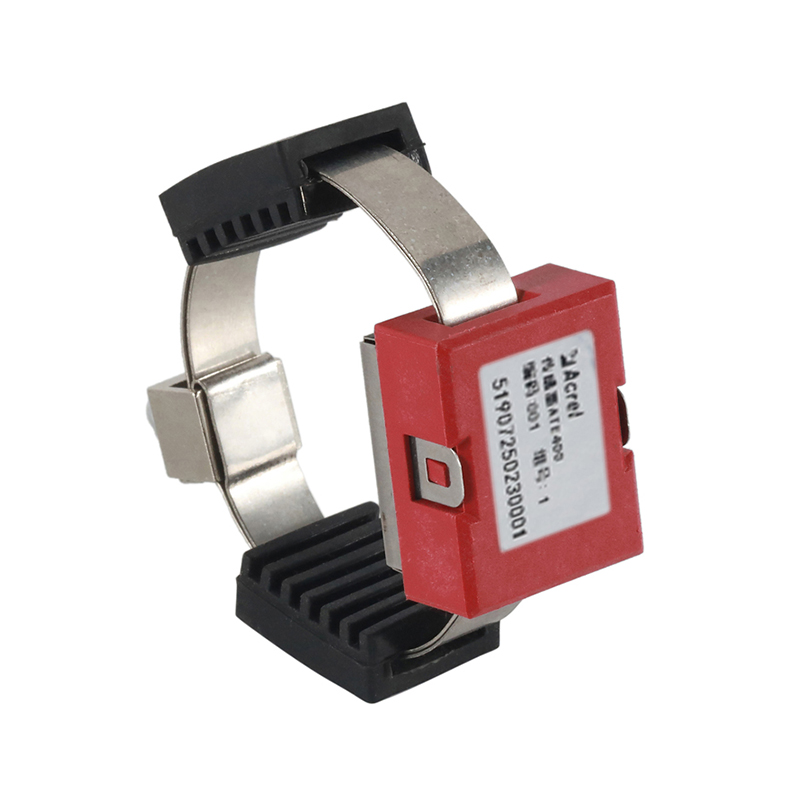

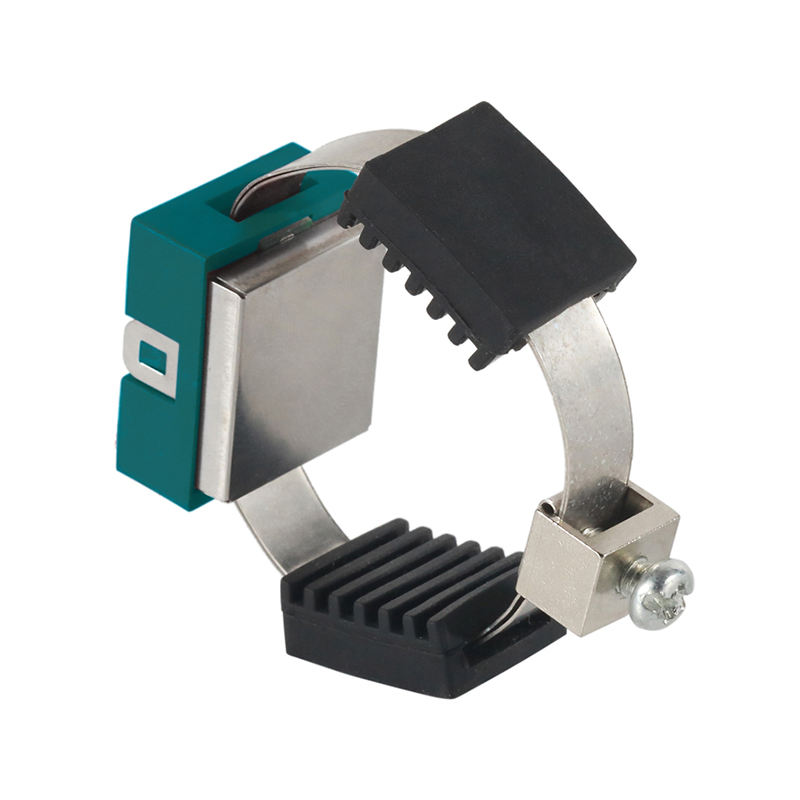

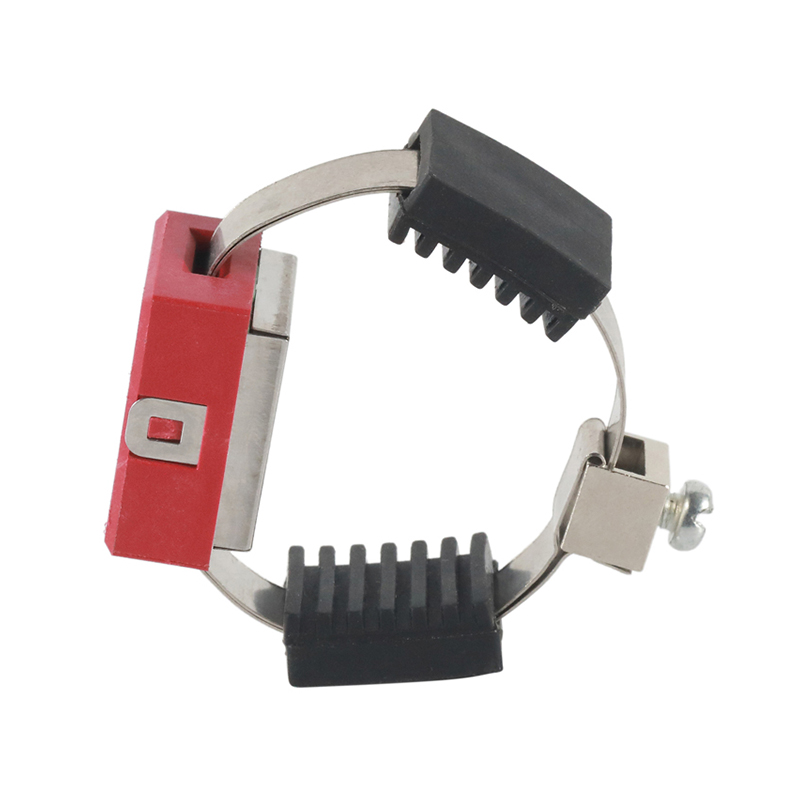

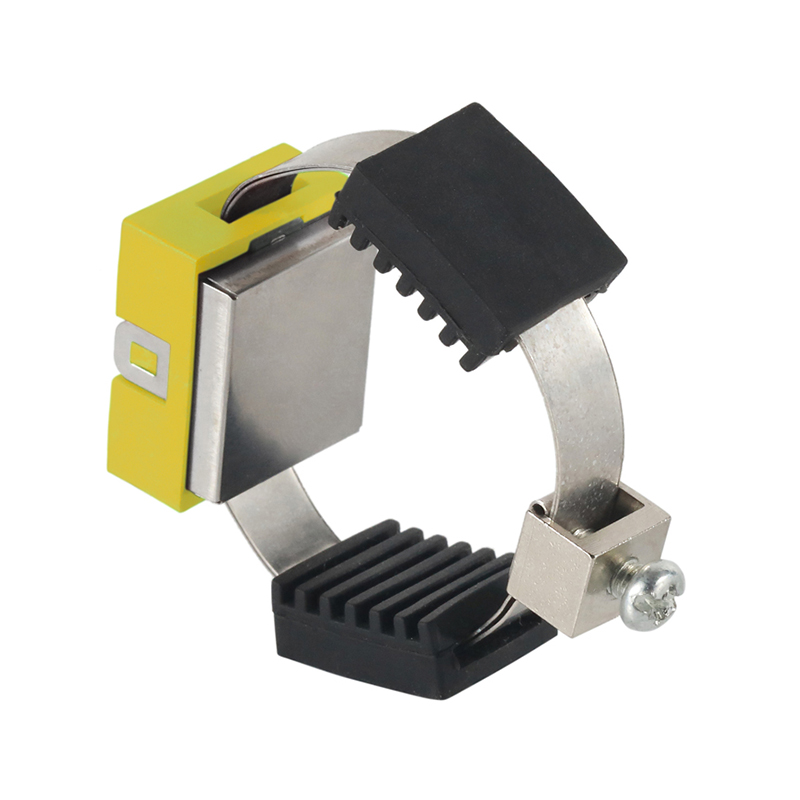

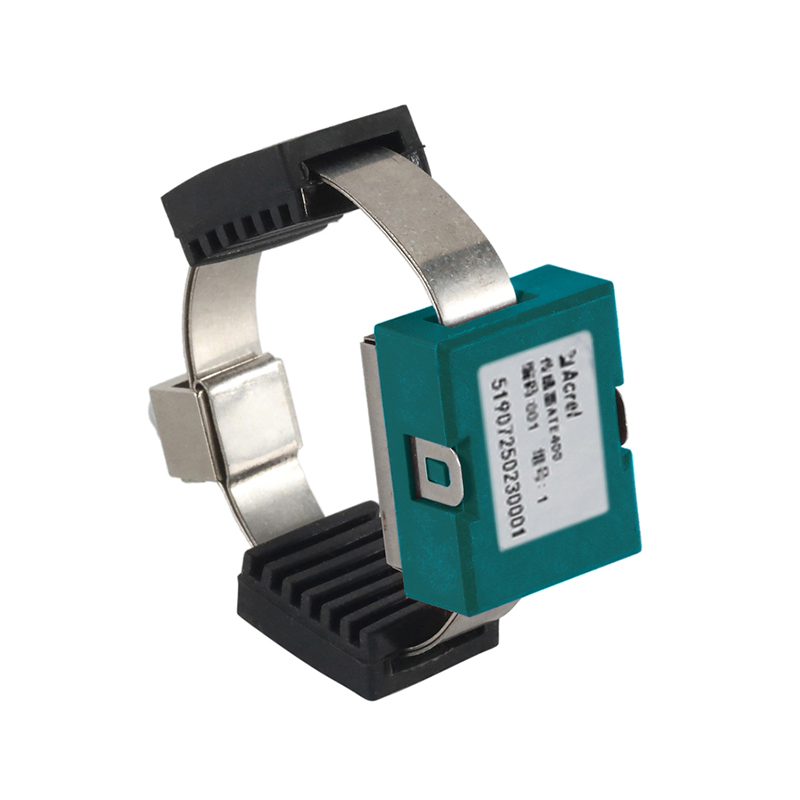

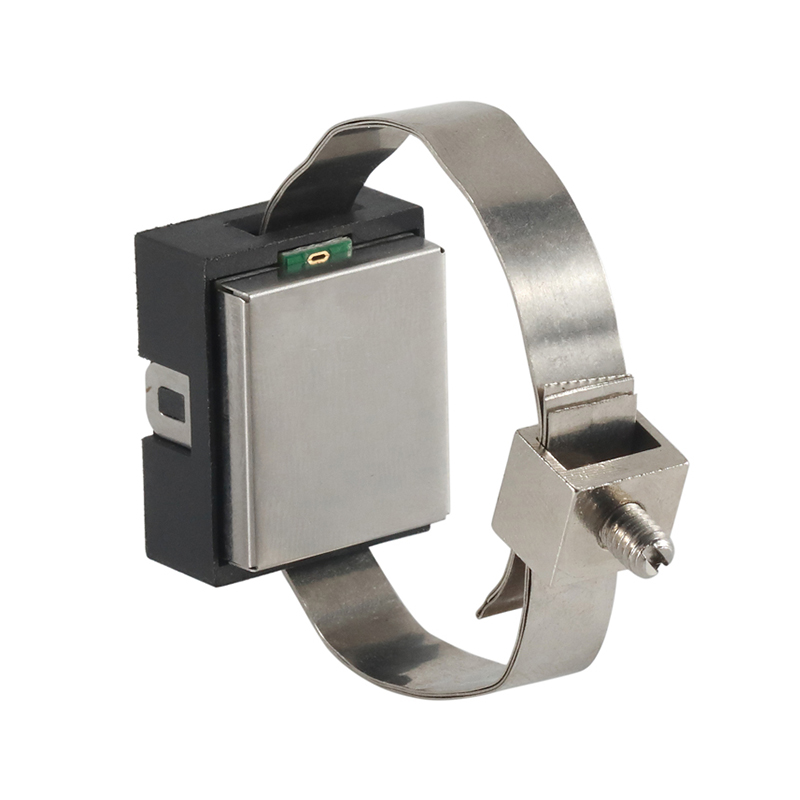

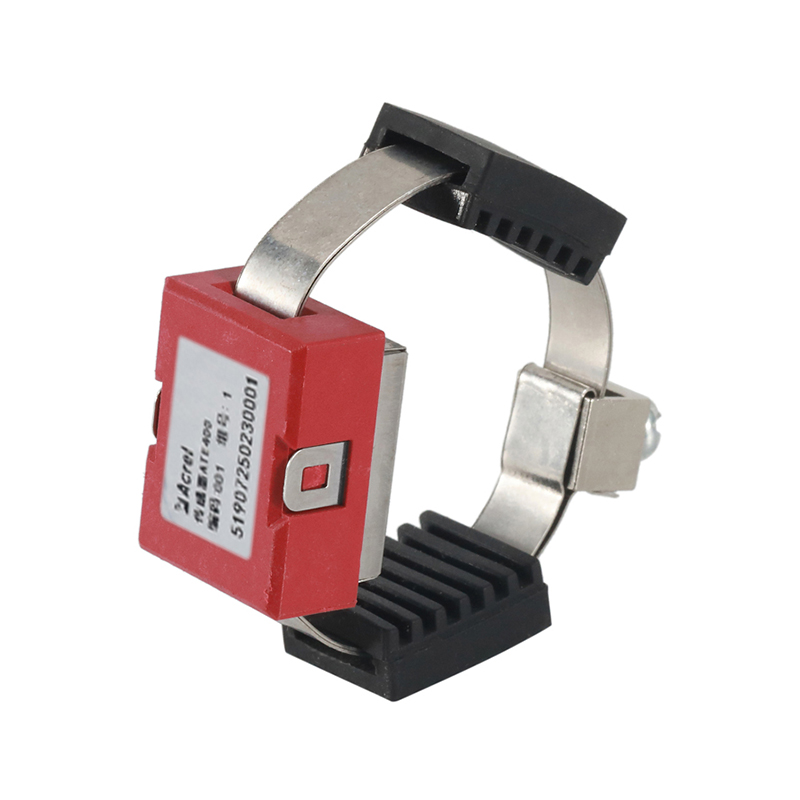

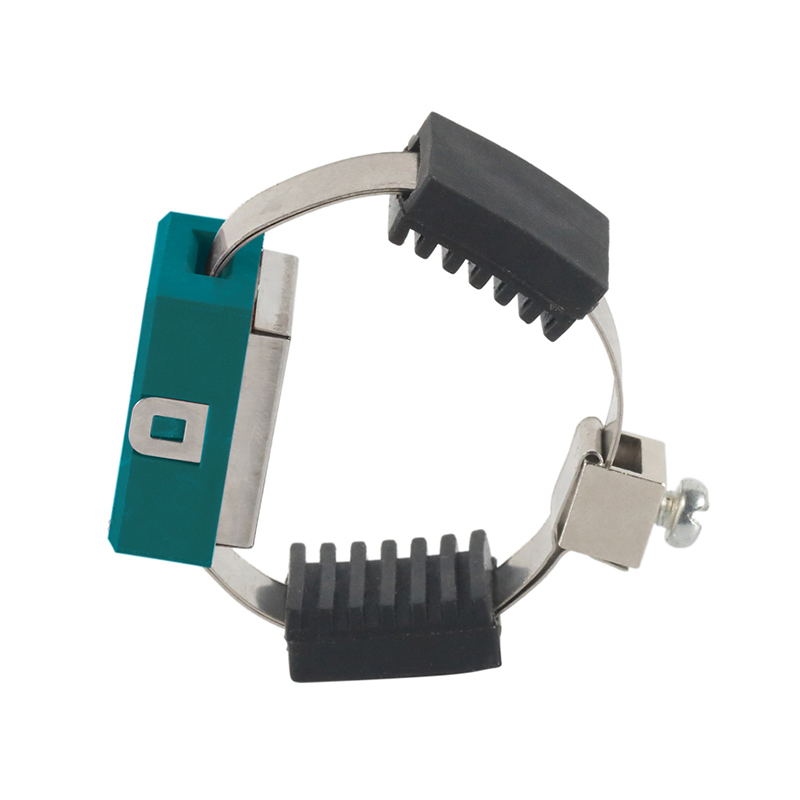

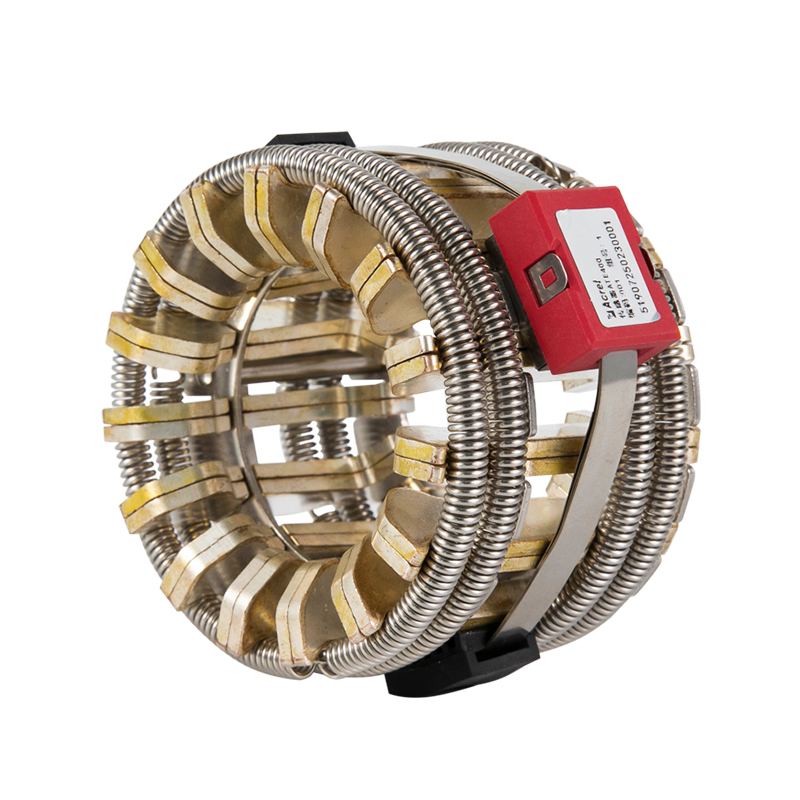

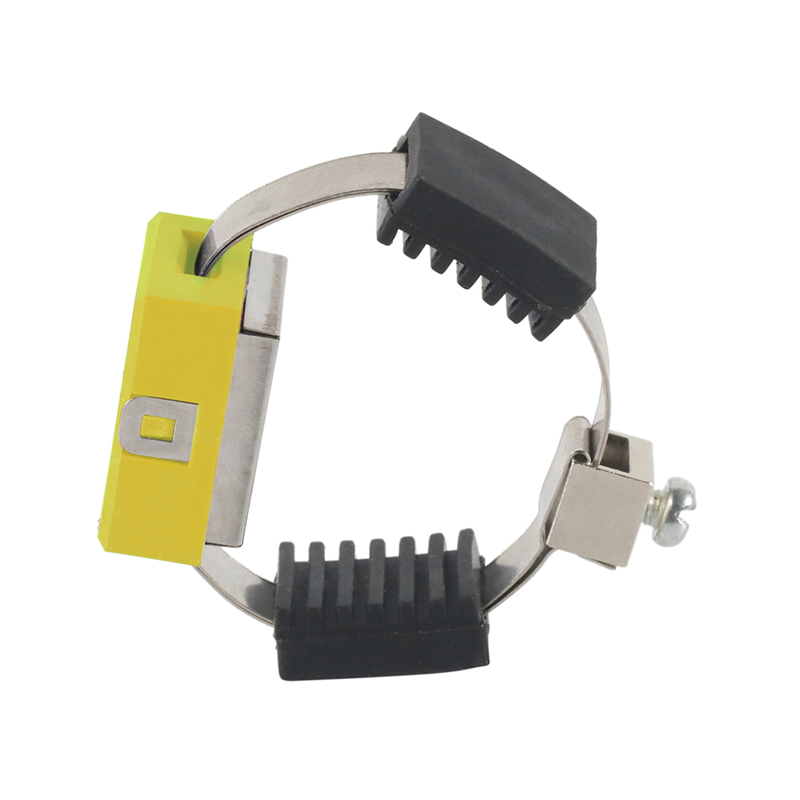

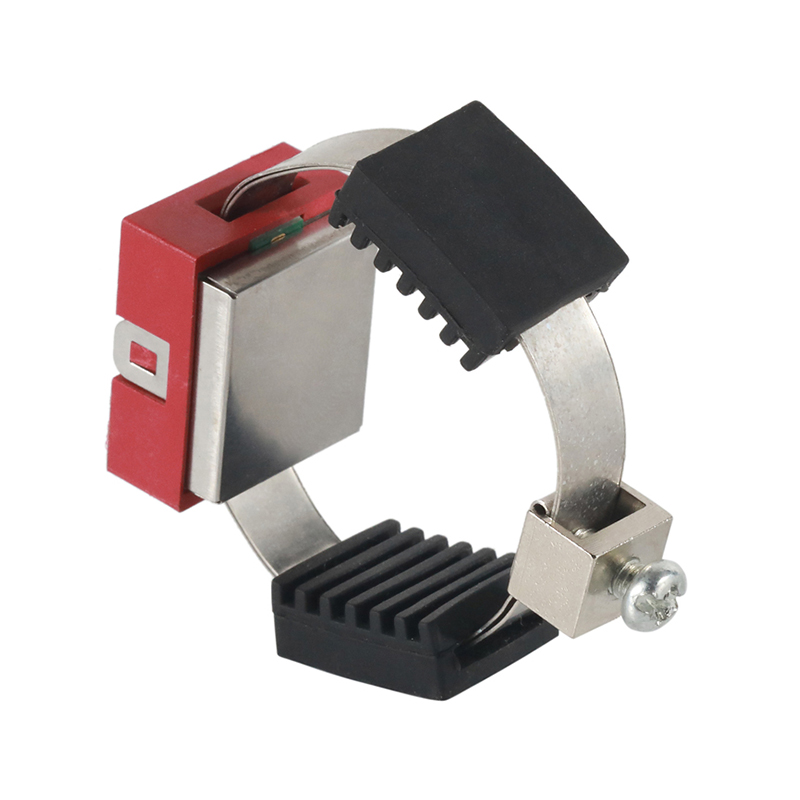

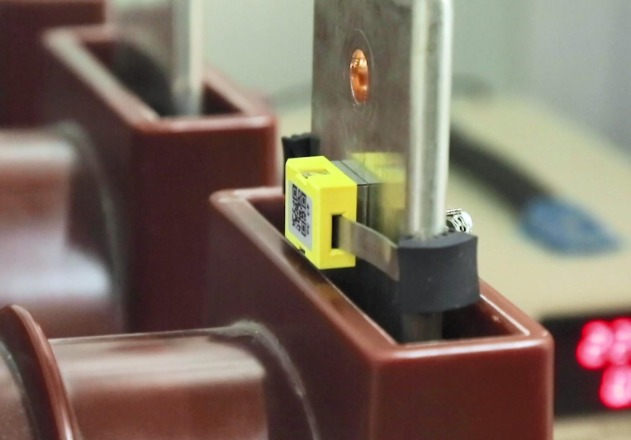

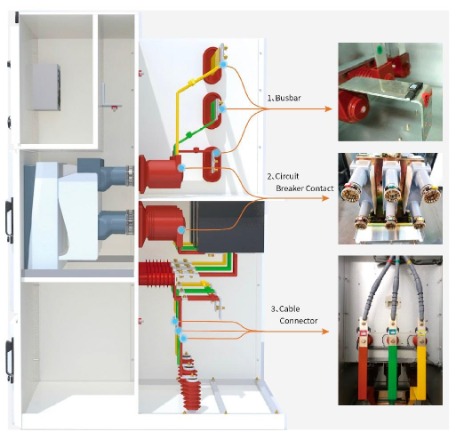

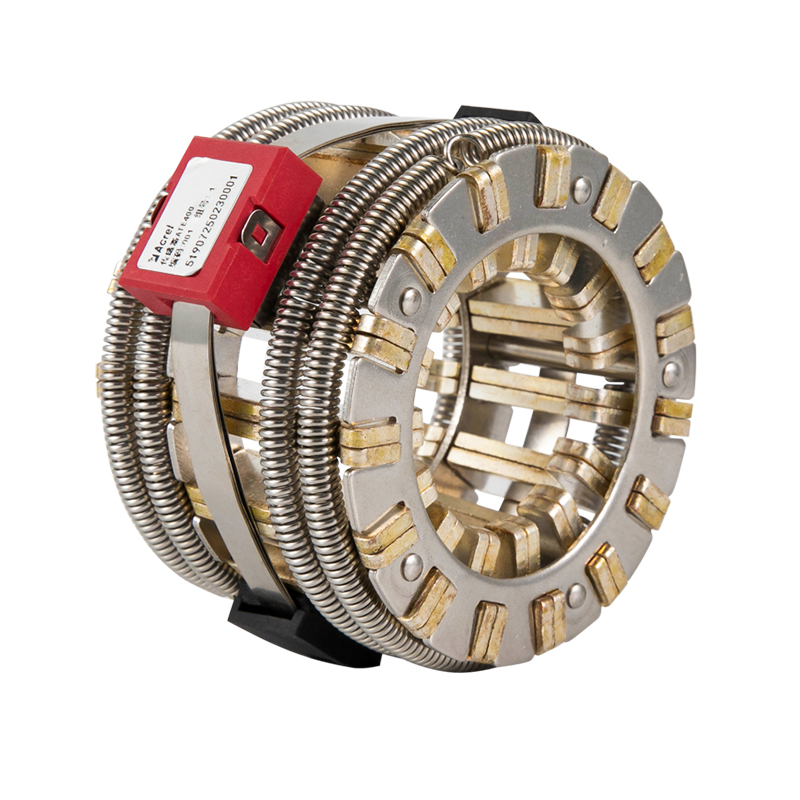

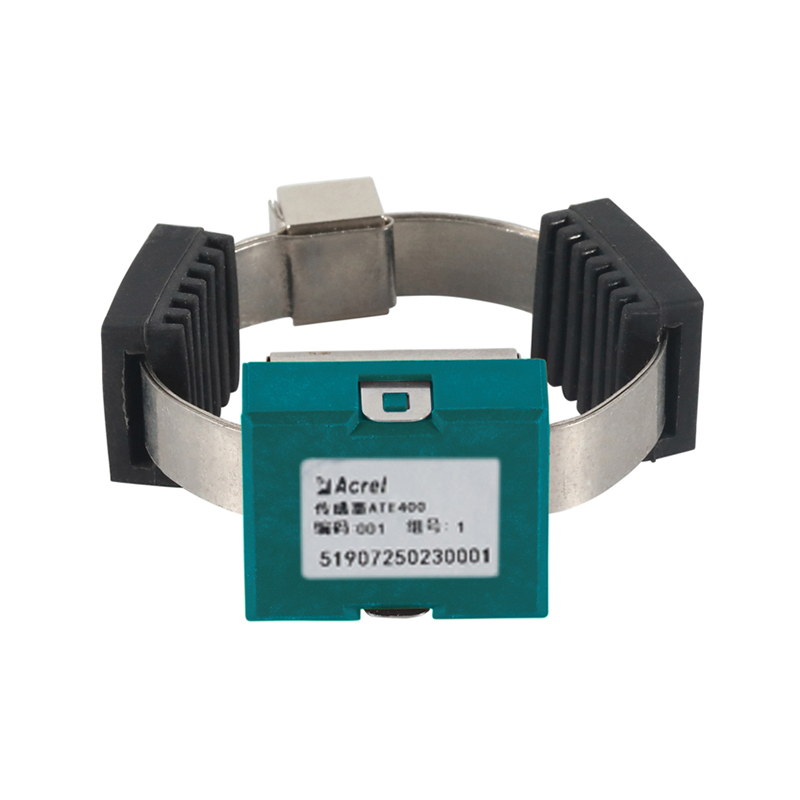

The ATE series wireless temperature sensor is designed for real-time temperature monitoring in 3–35kV indoor switchgears and 0.4kV low-voltage switchgears. It can be installed at critical heating points such as cable joints, busbars, and contacts inside the panels.
Using wireless data transmission, the sensor continuously monitors temperature and transmits data in real time to local displays or remote intelligent monitoring systems.
The ATE series complies with NB/T 42086-2016 and is suitable for various types of switchgears, including:
Built-in, handcart, fixed, and loop-net switchgears (3–35kV)
Fixed and drawer switchgears (0.4kV)
Temperature data can be transmitted in real time to a local display device or integrated into a remote intelligent monitoring system.
| Technical Specification | Value |
| Wireless frequency | 470MHz、433MHz |
| Communication distance | 150m（470Mhz）、50m(433Mhz)in open area |
| Sampling frequency | 15s |
| Transmission frequency | 15s |
| Power Source | CT-powered, starting current ≥5A |
| Installation | Alloy chip fixing |
| Sensor probe | Alloy bottom |
| Range of temperature | -50℃~125℃ |
| Precision | ±1℃ |
| Application | Joints in high or low voltage switchgears |

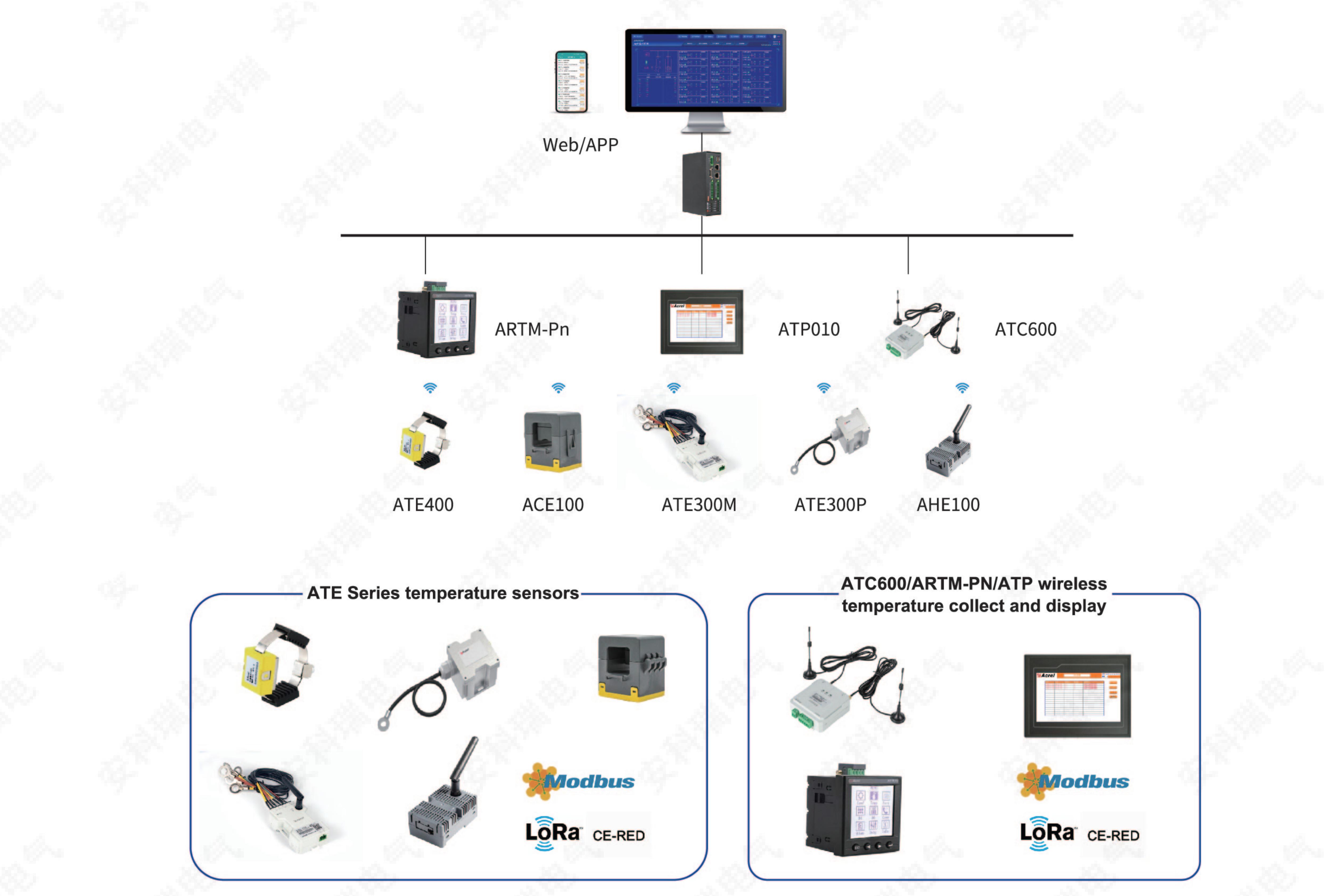

Wireless Temperature Monitoring System
