Uplink data: RS485, Modbus-RTU
Accuracy 0.5 class
maximum 60 ATE temperature sensors data collection
4DI/2DO

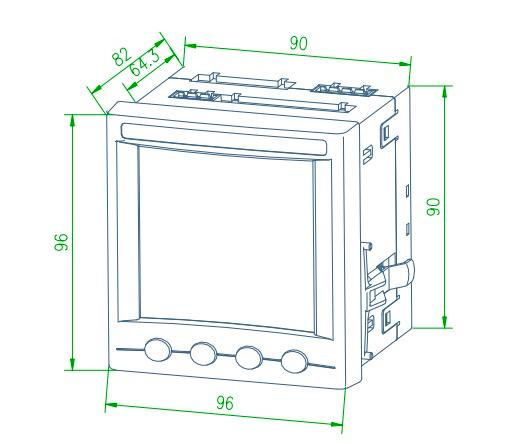

Panel: 96*96*17mm, depth:65mm
+86-18702106858 / +86-21-69156352

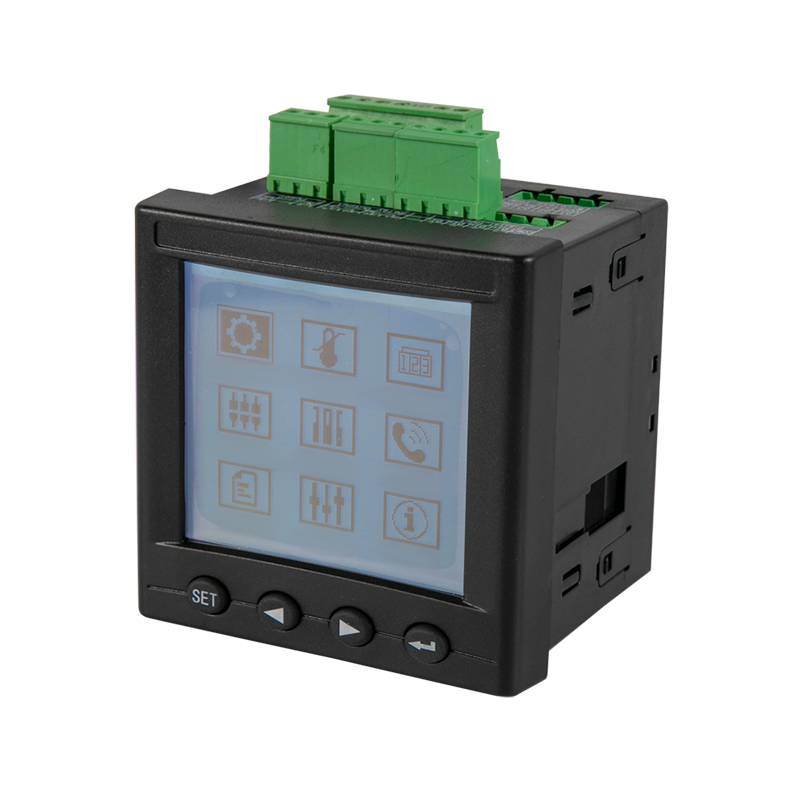

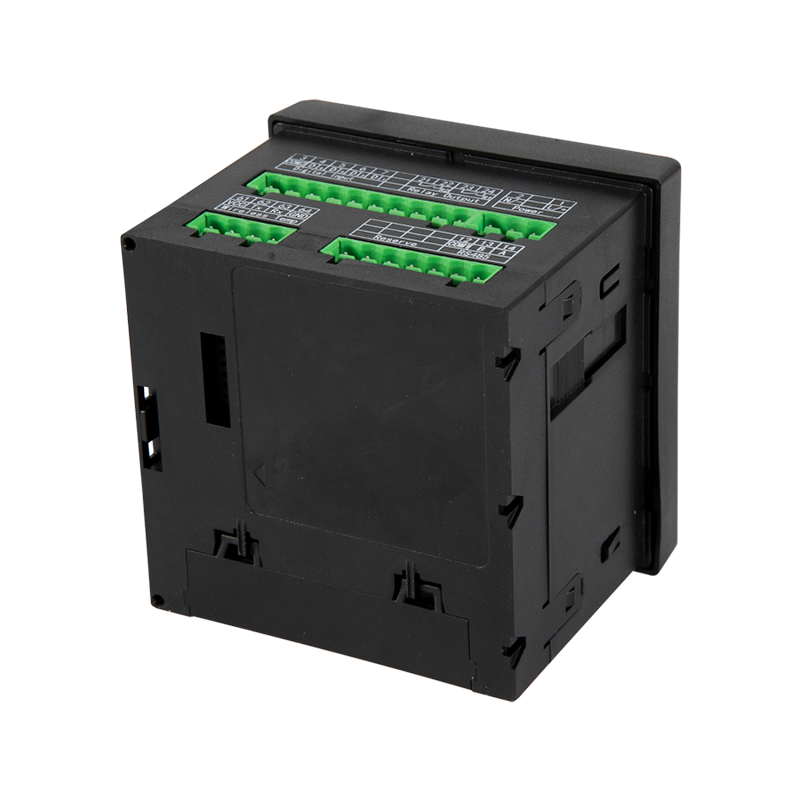

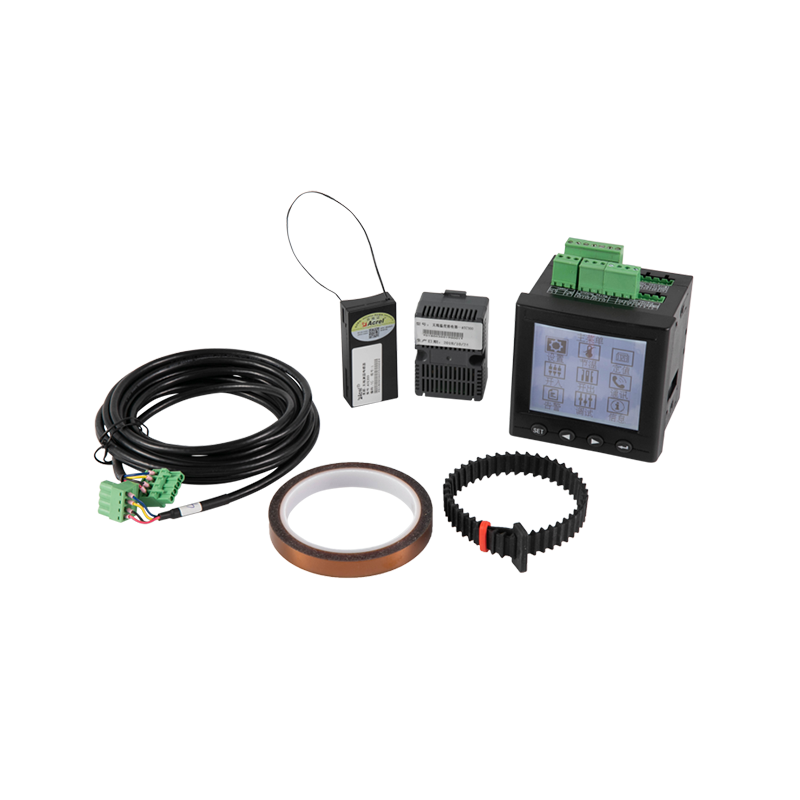

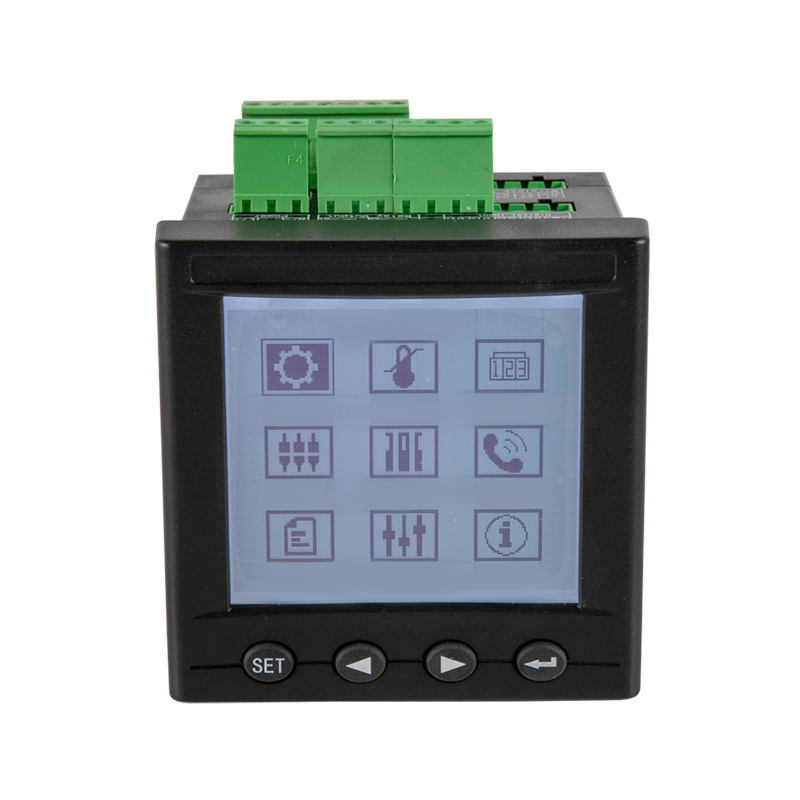

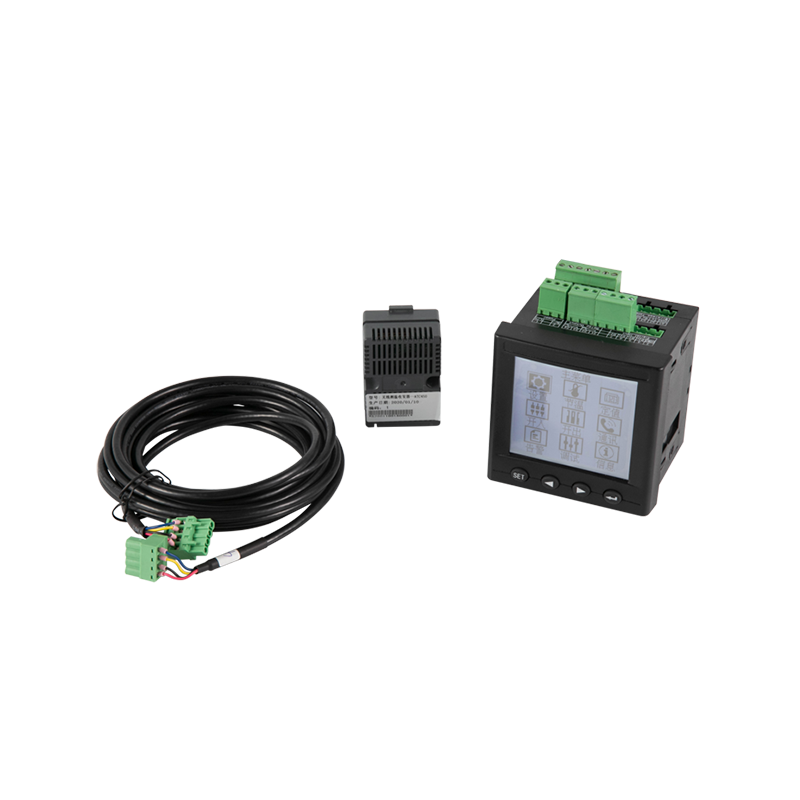

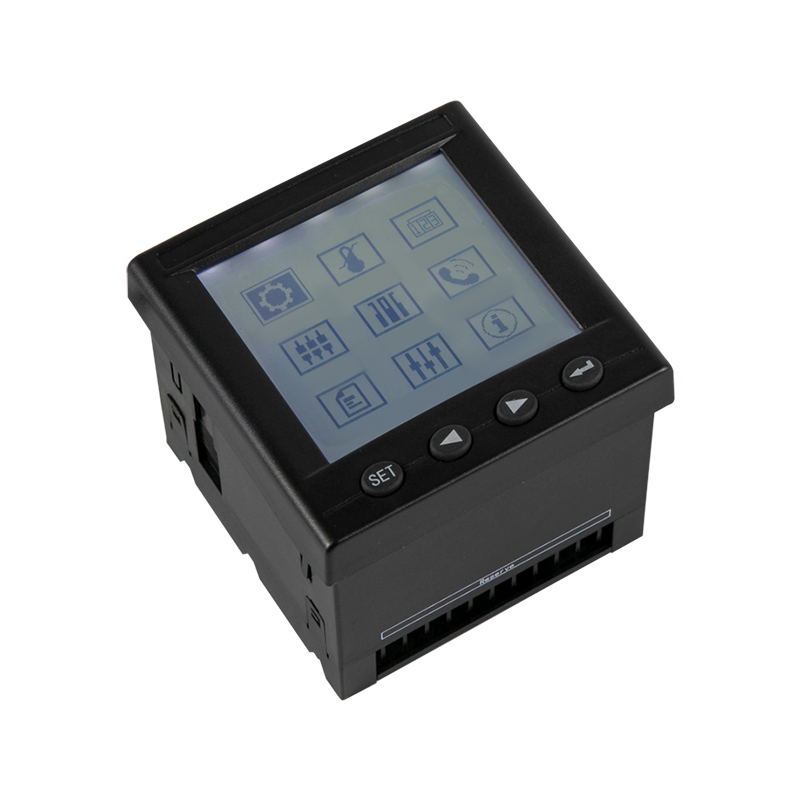

The ARTM-Pn is a wireless temperature monitoring device compliant with NB/T 42086-2016, designed for 3–35kV indoor switchgears and 0.4kV low-voltage switchgears. It supports real-time monitoring of up to 60 temperature points via wireless sensors installed at cable joints, busbars, or contacts. The device features local display, 4 digital inputs, 2 alarm relay outputs, and RS485 communication using Modbus-RTU, allowing seamless integration with remote monitoring systems. A high-temperature alarm ensures timely alerts for enhanced safety.
| Items | Features | |
| Rated input | Wiring mode | 3P3L/3P4L |
| Voltage | 100V/400V | |
| Current | 5A | |
| frequency | 50Hz | |
| Accuracy rating | Current、Voltage | 0.5 class |
| Active power | 0.5 class | |
| Reactive power | 0.5 class | |
| Energy | 0.5 class | |
| Power Source | AC85~265V，DC100~300V | |
| Power Consumption | 8W | |
| Communication | Protocol | Modbus-RTU |
| Baud rate(bps) | 2400、4800、9600、19200 | |
| Temperature | -20℃~55℃ | |
| Humidity | ≤95% | |
| Atmospheric pressure | 86kPa~106kPa | |
| MTBF | ≥50000 h | |
