Rated Current: 60A Direct Input
Bulit-in Relay
For Prepaid/Postpaid Billing System
Wireless WiFi/4G Communication Optional
RS485 Communication
Application:Shopping malls, Apartment, Dormitories and Retail Premises
+86-18702106858 / +86-21-69156352

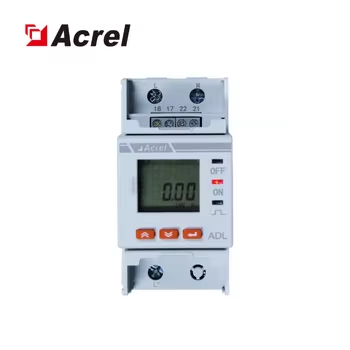

ADL200-NK/WF is 1-Phase prepaid meter featuring an integrated relay for secure disconnection and credit control.
Power is disconnected automatically once the tenant’s credit hits zero, falls into arrears, or reaches a preset limit, while built-in algorithms continuously scan for any abnormal load or tampering events.
| Voltage | Reference voltage | 220V | |||
| Consumption | <10VA(single-phase) | ||||
| Current | Input current | 10(60)A | |||
| Consumption | (Single channel rated current) | ||||
| Power | Active power, reactive power, apparent power, error ± 0.5℅ |
||||
| Frequency | 45～65Hz，error±0.2% | ||||
| Metering | Electric Energy |
Active electrical energy :Class 1 |
|||
| Clock accuracy | Error ≤0.5s/d | ||||
| Digital signal | Power pulse output | 1 active power optocoupler output | |||
| Pulse | Pulse Withd | 80±20ms | |||
| Pulse constant | 1600imp/kWh | ||||
| Communication | Interface | RS485(A+、B-) | |||
| Connection mode | Shielded twisted pair conductors | ||||
| Protocol | MODBUS-RTU | ||||
| Temperature range | Work temperature | -25℃~55℃ | |||
| Storage Temperature | -40℃~70℃ | ||||
| Relative humidity | ≤95%(No condensation) | ||||
| Altitude | <2000m | ||||
