AC Single Phase 60A Energy Meter for Prepaid Billing System

Rated Current: 60A Direct Input

Bulit-in Relay

For Prepaid/Postpaid Billing System

Rated Voltage: 230V

WiFi Communication Optional

RS485 Communication

Send Inquiry Contact Us

PREV: Wireless AC Single Phase Prepaid Meter for Billing System
NEXT: No next product

Describe

ADL200-NK is a multifunction energy meter designed for various electrical systems. It features a rated current of 60A direct input and a rated voltage of 230V, making it suitable for standard residential and commercial applications.

This meter supports both prepaid and postpaid billing systems, offering flexibility in payment options. Communication options include RS485 and optional WiFi, enabling seamless integration into modern smart grid and energy management systems.

Its compact design and advanced functionalities make it an ideal choice for efficient energy monitoring and management.

Specifications

Technical Parameter			ADL200-NK
Measu rement	Voltage	Reference voltage	220V
		Consumption	<10VA(single-phase)
		Impedance	>2M Ω
		Accuracy	±0.2%
		Input Current	10(60)A
	Current	Consumption	<4VA(Single channel rated current)
		Accuracy	±0.2%
			Active power, reactive power, apparent power, error ± 0.5℅
	Power
	Frequency		45～65Hz ，error±0.2%
Meteri ng	Electric Energy		active electrical energy class 1
			Reactive electrical energy class 2
	Clock accuracy		≤0.5s/d
Digital Signal	Power pulse output		1 active power optocoupler output
Pulse	Pulse Width		80±20ms
	Pulse constant		1600imp/kWh
Comm unicati on	Interface and communication protocol		RS485 Interface：Modbus RTU communication
	Communication address range		Modbus RTU:1~ 247
	Baud rate		1200bps~19200bps
Enviro nment s	Work temperature		-25℃~+55℃
	Storage Temperature		-40℃~+70℃
	Relative humidity		≤95℅ (No condensation)
	Altitude		<2000m

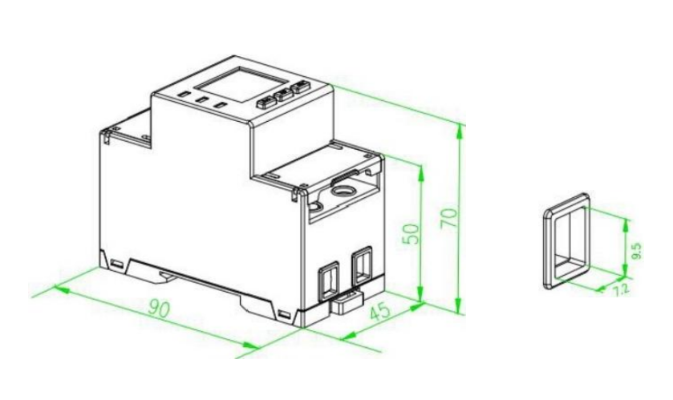

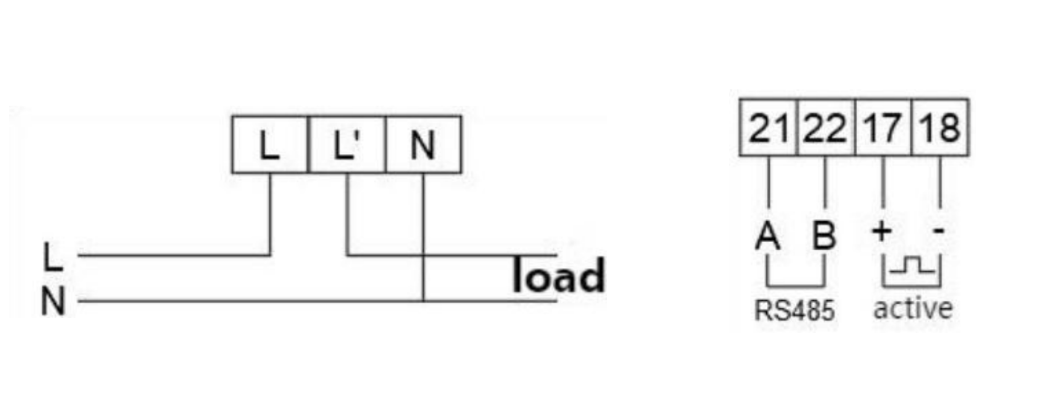

Dimension & Wiring Diagram

Application Scenario

Renewbale Energy

Energy Efficiency Management System

IoT Energy Management System

Work Site Application
