Rated Current: 80A Direct or 5A by CTs
Rated Voltage: 3*230/400V
For Solar Inverter Zero Export
RS485 Communication
+86-18702106858 / +86-21-69156352
ADL3000-E is a sophisticated three-phase multifunction energy meter designed for power supply systems, industrial and mining enterprises, and utilities.
It offers precise measurement of electricity consumption and comprehensive electrical demand management. Key features include bi-directional measurement and dual-source measurement capabilities, ensuring accurate energy measurement in complex power systems.
The device is equipped with RS485 communication, compatible with the MODBUS-RTU protocol, facilitating integration into various control systems, SCADA systems, and energy management systems.
Certified by UL, it meets stringent safety and performance standards. With a rated current of 3×277/480V, it is suitable for a wide range of applications. Its high-precision measurement, small size, and simple installation make it an ideal choice for energy monitoring and management in diverse industrial and commercial settings.

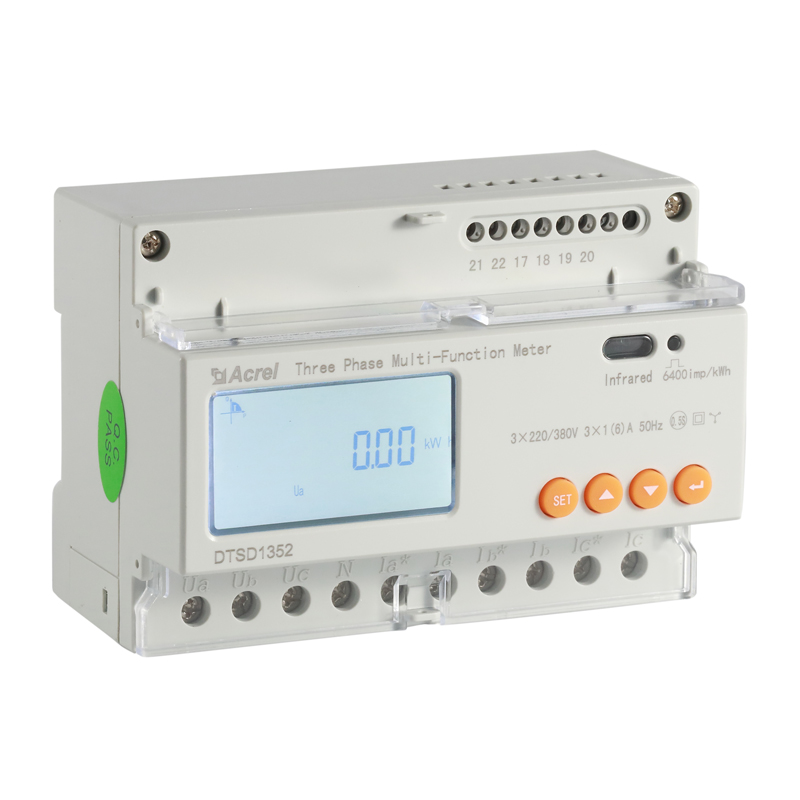

| DTSD1352 | Specifications | ||
| Phase | 3 phase 3 wires, 3 phase 4 wires | ||
| Measurement | Voltage | Reference voltage | 3×100V, 3×380V, 3×57.7/100V, 3×220/380V |
| Consumption | <10VA(Single phase) | ||
| Impedance | >2MΩ | ||
| Accuracy class | Error±0.2% | ||
| Current | Input current | 3×1(6)A(by CTs), 3×10(80)A 3×10(100)A(Equipped with CTs) |
|
| Consumption | <1VA Single-phase rated current | ||
| Accuracy class | Error±0.2% | ||
| Power | Active, reactive, apparent power, error±0.5℅ | ||
| Frequency | 45～65Hz, Error±0.2% | ||
| Meter | Energy | Active energy (Accuracy class: 0.5，1.0) | |
| reactive energy(Accuracy class 2) | |||
| Clock | ≤0.5s/d | ||
| Digit Signal | Energy pulse output | 1 active photocoupler output，1 reactive optocoupler output | |
| Switching output | 1 Switching output | ||
| Switching input | 1 optocoupler input | ||
| Pulse | Width of pulse | 80±20ms | |
| Pulse constant | 400imp/kWh,10000imp/kWh(Correspond with the basic current) | ||
| Communication | Interface and communication protocol | RS485：Modbus RTU | |
| Range of communication address | Modbus RTU:1~ 247； | ||
| Baud rate | 1200bps~19200bps | ||
| Environment | Working temperature | -25℃~+55℃ | |
| Relative humidity | ≤95℅(No condensation) | ||
