Smart Gateway
Data Tranfer Unit (DTU)
4G/WiFi/Ethernet/LoRa/LoRaWAN Communication
CE Certificated
Downstream RS485 Communication
Max. Access 25 Devices
+86-18702106858 / +86-21-69156352

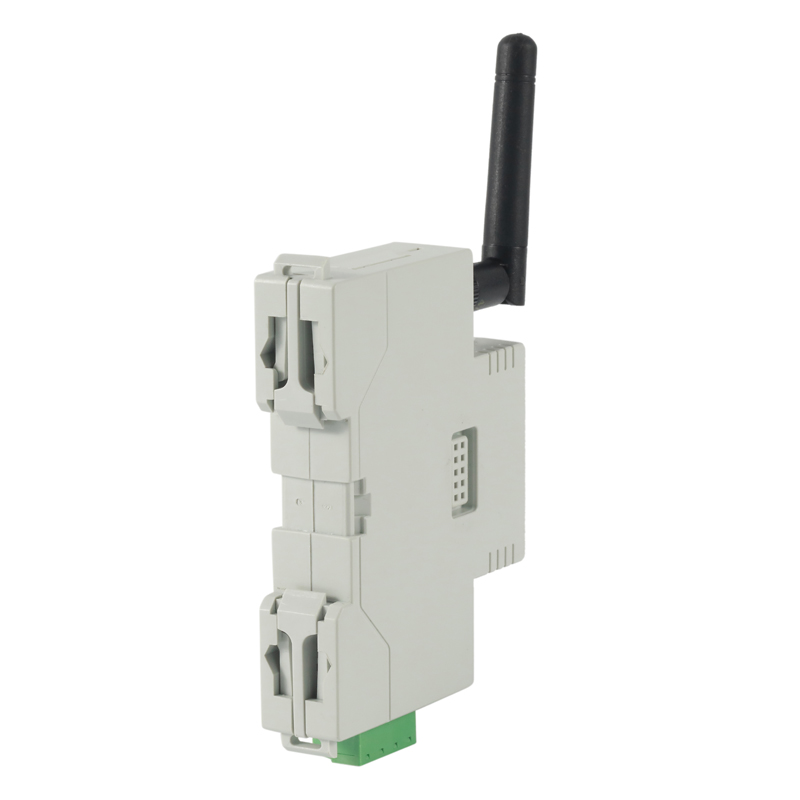

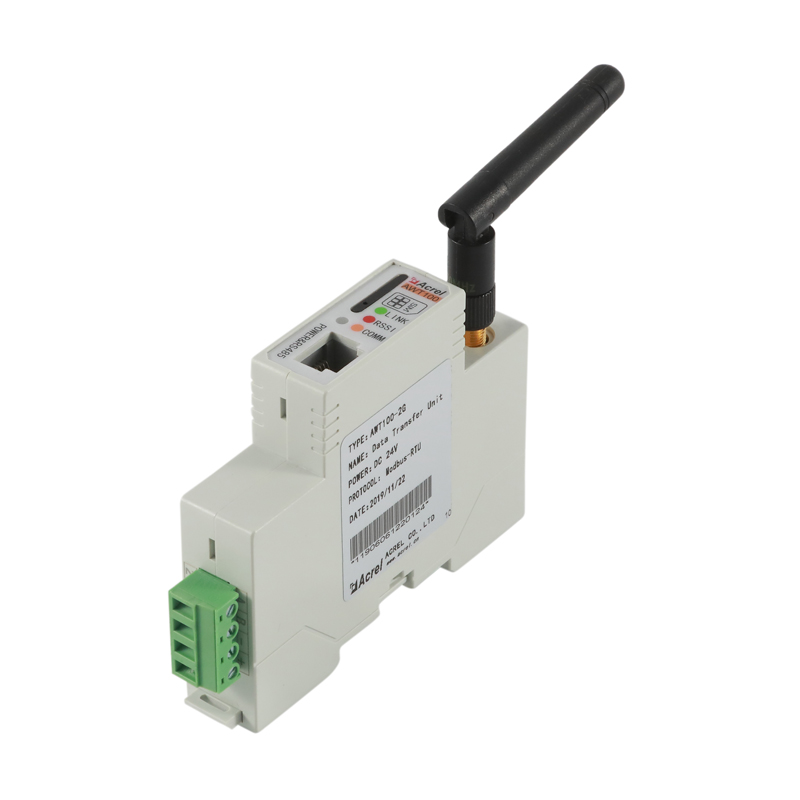

Acrel AWT100 Smart Gateway Data Transfer Unit is a versatile wireless communication terminal designed for efficient data acquisition and transmission.
It supports multiple upstream communication methods, including 4G/WiFi/Ethernet/LoRa/LoRaWAN, and downstream RS485 communication. The device is CE certificated and can access up to 25 devices.
With its powerful micro-processing chip and built - in watchdog technology, AWT100 ensures reliable and stable performance. It can easily connect to power meters, RTUs, PLCs, industrial computers, etc., and supports transparent transmission protocol, MQTT protocol, and others. Widely applicable in smart buildings, industrial automation, energy management, and more, it facilitates the digital transformation of traditional equipment and enhances the intelligence level of various systems.
| Parameter | AWT100-4G | AWT100-LoRa | AWT100-LW | AWT100-LW868 | AWT100-LW923 | AWT100-LORAHW | AWT100-WiFi | AWT100-CE |
| Working Frequency |
LTE-FDD B1 B3 B5 B8 | 460～510MHz | 470MHZ | 863-870MHZ | 920-928MHZ | 860-935MHZ | support 2.4G frequency band | Ethernet Rate 10/100M Adaptive |
| LTE-TDD B34 B38 B39 B40 B41 | ||||||||
| CDMA B1 B5 B8 | WiFi rate: 115200bps | |||||||
| GSM 900/1800M | ||||||||
| Transmission Rate |
LTE-FDD Maximum downlink rate 150Mbps Maximum uplink rate 50Mbps |
LoRa 62.5kbps | / | / | ||||
| LTE-TDD Maximum downlink rate130Mbps Maximum uplink rate 35Mbps |
||||||||
| CDMA Maximum downlink rate 3.1Mbps Maximum uplink rate 1.8Mbps |
||||||||
| GSM Maximum downlink rate 107Kbps Maximum uplink rate 85.6Kbps |
||||||||
| Downlink | RS485 Communication | |||||||
| SIM Card Voltage | 3V，1.8V | LoRa Communication | WiFi Communication | Ethernet Communication | ||||
| Working Current | Static power：≤1W Transient power consumption：≤3W |
|||||||
| Antenna Interface | 50Ω/SMA（Faucet） | RJ45 | ||||||
| Baud Rate | 4800bps、9600bps、19200bps、38400bps（Default 9600bps） | |||||||

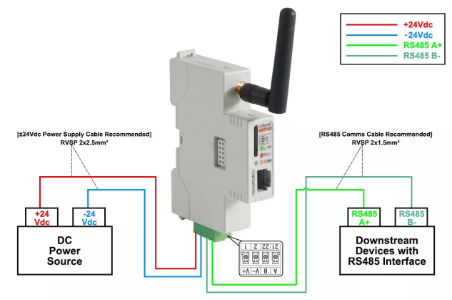

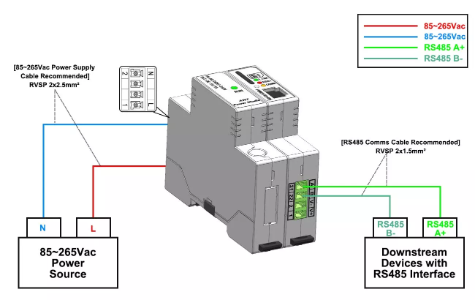

| Operating Voltage |
DC24V or AC/DC220V① | |||||||
| Operating Temperature | -10℃～55℃ | |||||||
| Storage Temperature | -40℃～85℃ | |||||||
| Humidity Range | 0～95% Non-condensing | |||||||
