6.2mm Ultra-thin

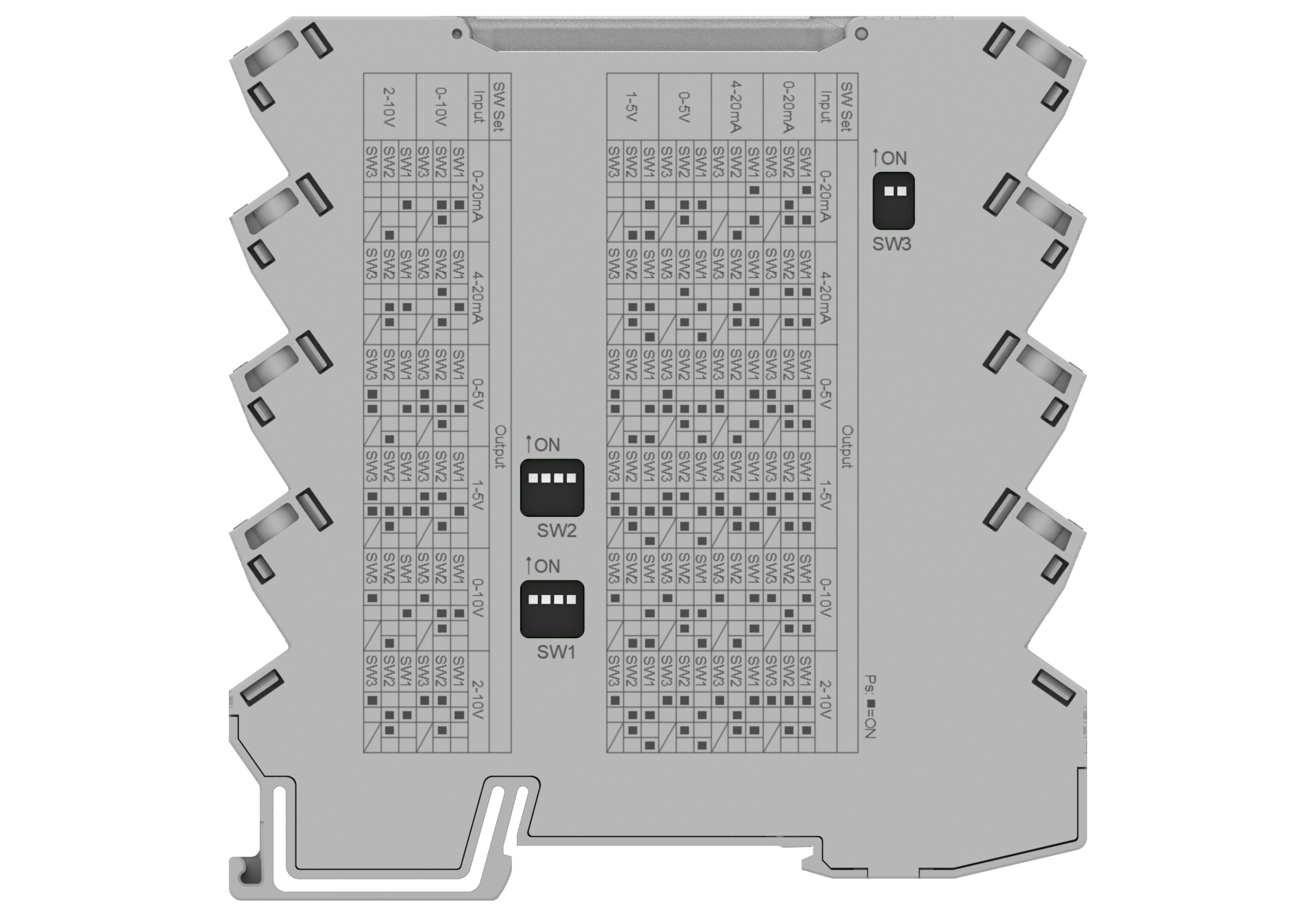

DIP Switch for Input & Output Signal
CE & IEC Approval
Sofeware Configurable
Input Signal: 0~20mA,4~20mA, 0~5V,1~5V,0~10V,2~10V (Switchable)
Output Signal: 0~20mA,4~20mA, 0~5V,1~5V,0~10V,2~10V (Switchable)
+86-18702106858 / +86-21-69156352

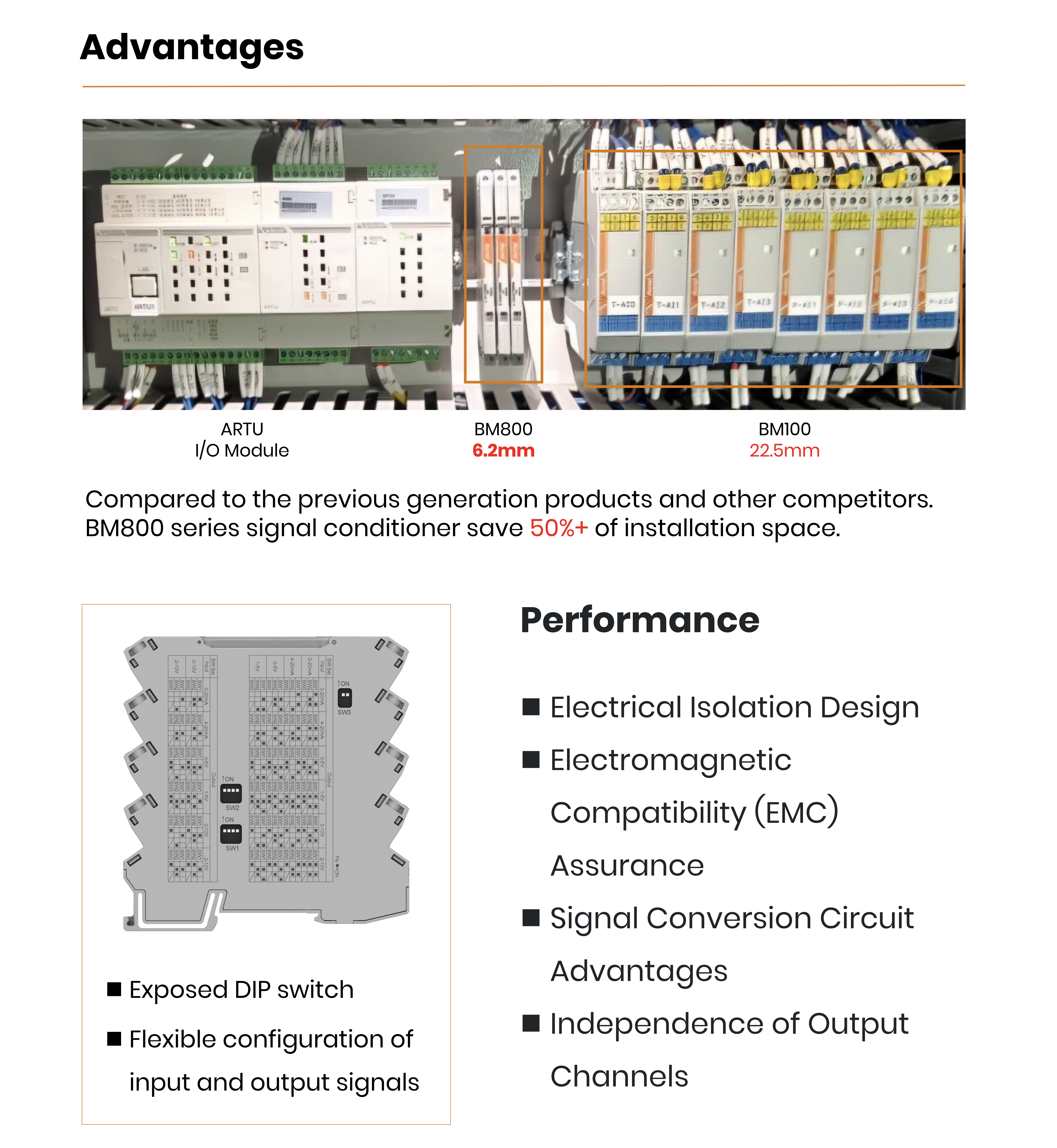

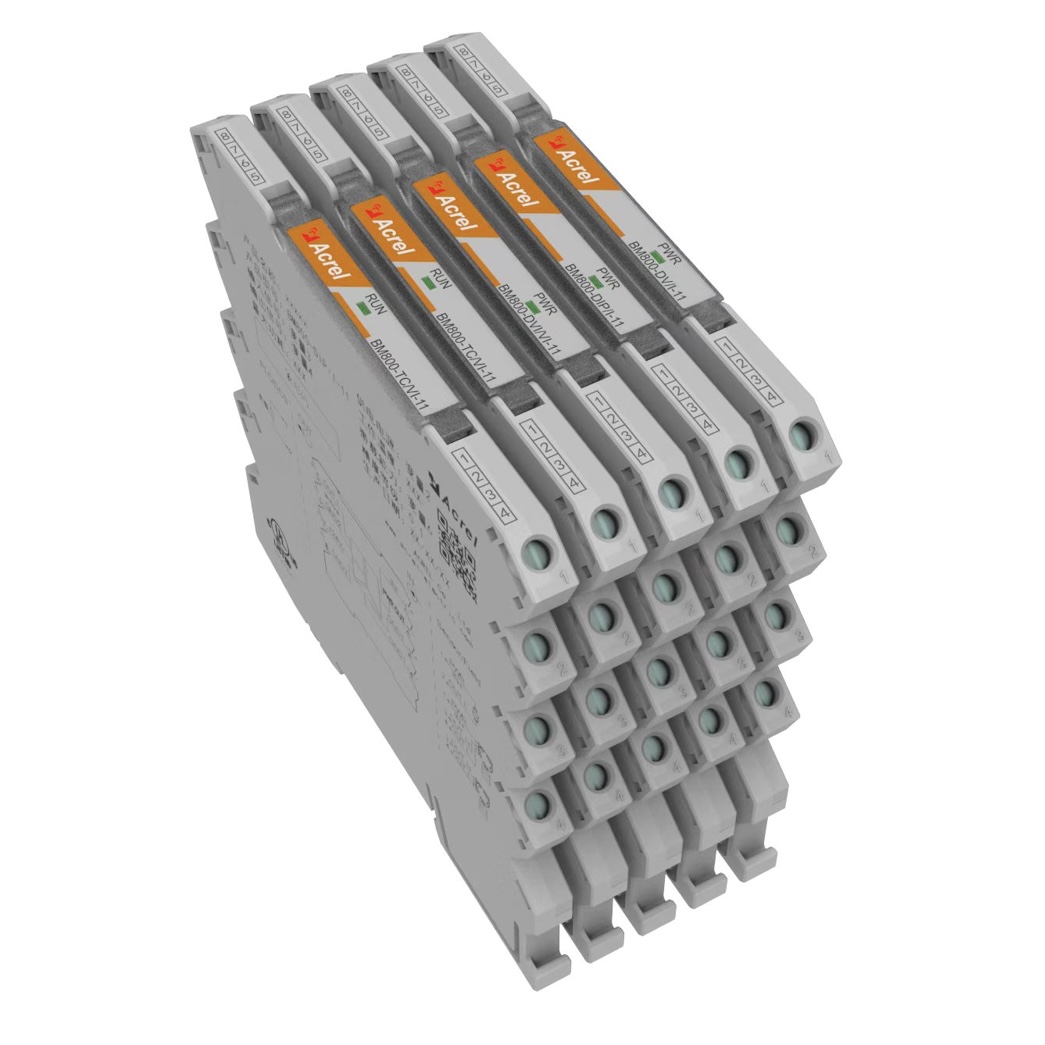

BM800 Series Signal Conditioner, which also as known as Signal Isolators, Signal Converters, and Signal Transducers, is an advanced industrial signal conditioning device with a super - thin 6.2mm design, saving over 50% of installation space. It boasts 0.1% accuracy, electromagnetic compatibility assurance, and features like electrical isolation, signal conversion circuit advantages, and independent output channels. With a DIP switch for flexible input and output signal configuration, it can process various signals such as 0/4~20mA, 0/1~5V, etc. It also has excellent performance in temperature drift, response time, and insulation strength.
|

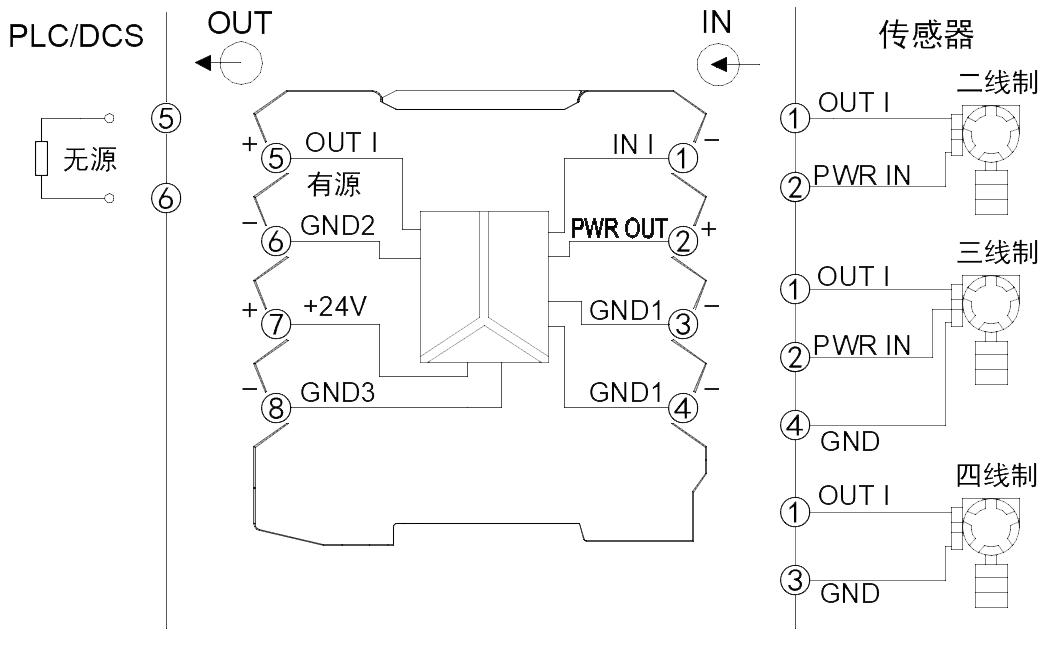

Model |
BM800-DIP/I-11 |
BM800-DV/I-11 |
BM800-DVI/VI-11 |
|
Channel Type |
1 Input 1 Output |
||
|
DIP Switch |
Fixed |
DIP |
|
|
Input Signal |
0/4~20mA（Two-wire and three-wire transmitters, current source） |
0/1~5V,0/2~10V |
0~20mA,4~20mA, 0~5V,1~5V,0~10V,2~10V (Switchable) |
|
Input Impedence |
Current input: 100Ω; Voltage input: 50K (0-5V), 100K (0-10V). |
||
|
Accuracy |
0.1% |
||
|
Output Signal |
DC 0/4~20mA |
DC 0/4~20mA,DC 0/1～5V, DC 0/2～10V (Switchable) |
|
|
Power Dissipation |
≤2W |
||
|
Distributing |
Distribution voltage at 20 mA: 20V |
/ |
|
|
Capability |
DC 0 / 4 ~ 20 mA; load resistance of 550 Ω DC 0-5 V / 1~5V; load resistance: 330K Ω DC 0~10V / 2~10V; load resistance: 500K Ω |
||
|
Output Ripple |
≤100mVpp (Load Resistance100Ω) |
||
|
Temperature Drift |
50ppm/℃ |
||
|
Response Time |
Reaches 90% of the final value within 5ms |
||
|
Power Supply Voltage |
24V DC |
||
|
Temperature |
--20℃ ~ + 60℃ (storage temperature: -40℃ ~ + 80℃) |
||
|
Insulation Strength |
The insulation voltage between any two groups of input, power supply, and output terminals is ≥1500V AC; (Insulation resistance ≥100MΩ) |
||
|
Levels of Protection |
IP20 |
||
|
Weight |
60g |
||
|
EMC |
IEC61000-6-2； IEC61000-6-4 |
||
|
Dimension |
6.2mm*97mm*100mm |
||
-
