The Guardian of Power Systems: A Guide to Basic Principles and Classification of Electrical Protection Relays

In modern complex power systems, ensuring their safe, stable, and efficient operation is a critical core task. Electrical protection relays are precisely the "silent guardians" entrusted with this mission. They constantly monitor key parameters of the power system, such as current, voltage, and frequency. Once they detect abnormalities like overcurrent, short circuits, or ground faults, they act swiftly to send alarms or command circuit breakers to trip, isolating the faulty equipment from the system. This protects valuable assets, prevents accidents from escalating, and ensures personnel safety.

As a high-tech enterprise specializing in electrical safety and energy management since 2003, Acrel Co., Ltd. deeply understands the foundational role of protection relays in overall solutions. Our product development and system design always revolve around this core, building comprehensive safety barriers for customers from perception to execution.

Basic Principles

The working principle of protection relays is based on one core objective: Identify and Isolate Faults. Its basic logic can be summarized as:

1. Measurement: Continuously collect real-time data from the power line through connected Current Transformers (CTs) and Voltage Transformers (VTs).
2. Comparison: Compare the measured values with internally preset "setting values." These settings are carefully calculated thresholds representing the safety boundaries for normal system operation.
3. Decision: When a measured value exceeds or falls below the setting value (e.g., a sudden current surge) and lasts for a certain time (time delay avoids false operations), the relay judges that a fault has occurred.
4. Action: The relay outputs a contact signal, triggering the circuit breaker's trip coil to open and disconnect the faulty circuit, completing the protective action.

Leveraging over 600 patents and software copyrights, Acrel deeply integrates this principle with advanced microprocessor technology. Our protection relays are not just simple switching devices but intelligent terminals integrating measurement, monitoring, communication, and diagnostic functions.

Classification Guide

Protection relays can be classified in various ways. Acrel's product ecosystem covers the following main types to meet the needs of different scenarios:

1. Classified by Technological Evolution:

• Microprocessor-Based / Digital Relays: This is the core product direction for Acrel. Based on digital signal processing technology, they are powerful, precise, and highly flexible. A single device can integrate multiple protection functions (such as overcurrent, overvoltage, undervoltage, differential, etc.) and possesses capabilities like fault recording, power quality analysis, and remote communication (supporting protocols like Modbus, IEC 61850). They are key "edge" devices in building the company's "cloud-edge-end" energy internet architecture.

2. Classified by Protection Function (Common Types):

• Overcurrent Protection: The most basic and widespread protection type, used to respond to short-circuit and overload faults. Acrel's product series offer precise choices for definite-time (DT) and inverse-time (IDMT) characteristics.
• Differential Protection: Operates by comparing the vector sum of currents at both ends of the protected equipment. It offers high sensitivity and selectivity, serving as the primary protection for important assets like transformers, busbars, and large motors. Acrel provides reliable protection solutions for such critical assets.
• Distance Protection: Mainly used in transmission lines, it determines the fault location by measuring the impedance (distance) from the protection installation point to the fault. It is an important technology for achieving grid-level protection.
• Earth Fault Protection: Used to detect leakage or single-phase ground faults in the system caused by insulation damage. It is crucial for preventing electric shock and fire risks and is a focus in Acrel's electrical safety solutions.

3. Classified by Application Scenario:

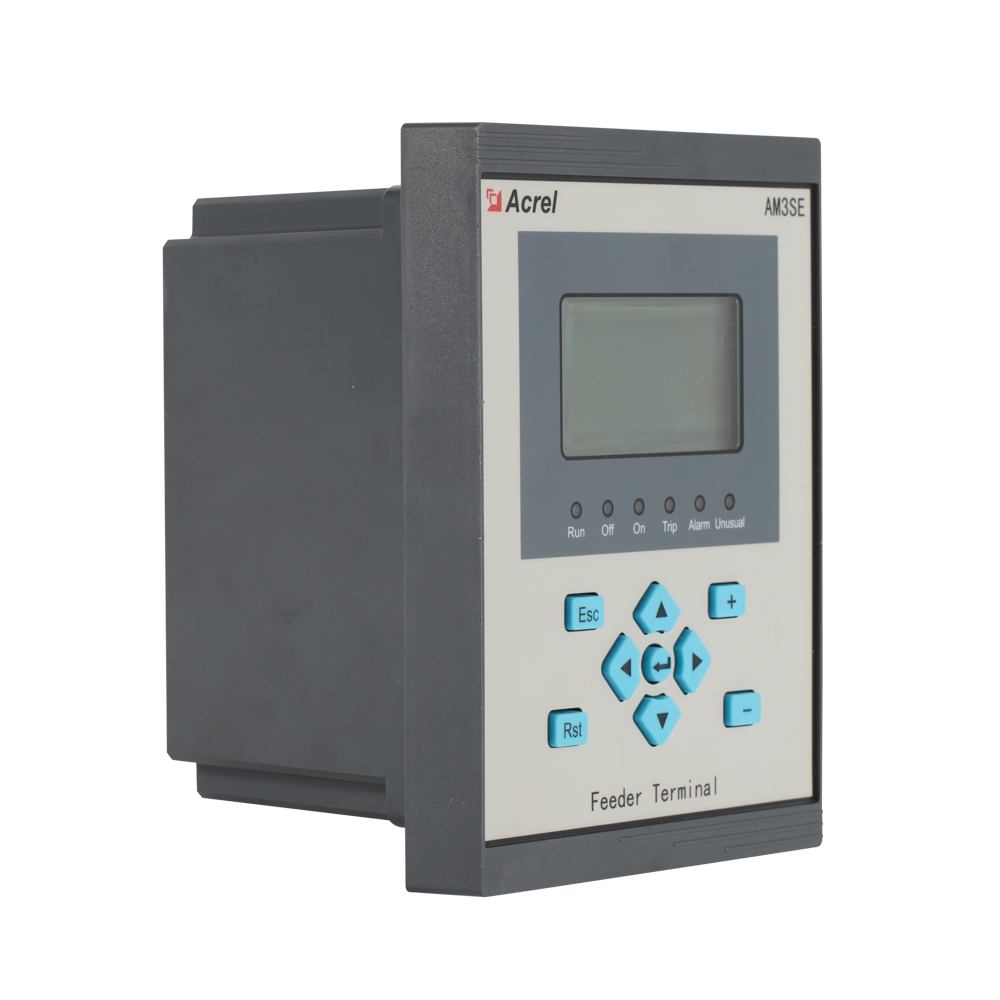

• Distribution System Protection: Used in substations, distribution rooms, etc. Acrel's AM series, ARB series, and other products are widely used in this field.
• End-User Protection: Aimed at end-users like smart buildings, data centers, rail transportation, and industrial manufacturing, Acrel offers a range of compact, easy-to-install, and configure protection and monitoring control devices that integrate perfectly into our energy management systems for intelligent management.

Analysis of Basic Principles and Core Functions of Transformer Protection Relays

Transformers are critical energy conversion equipment in power grids, and their safe and stable operation is paramount. Transformer protection relays are designed as "intelligent guardians" to ensure this goal. As Acrel Co., Ltd., with years of deep expertise in energy management and electrical safety, we profoundly understand the importance of transformer protection and are committed to providing comprehensive protection for our clients' critical assets through advanced technology and reliable products.

I. Basic Principles: Sensing, Judgment, and Execution

The working principle of a transformer protection relay follows a classic "sense-judge-execute" logical loop, which is highly consistent with the logic of the "cloud-edge-end" energy internet architecture advocated by Acrel.

1. Sensing (Data Acquisition - "End"):
The protection relay continuously and accurately collects the operating status data of the transformer, such as three-phase current, voltage, oil temperature, and internal gas content, through sensing devices installed on each side of the transformer, such as Current Transformers (CTs), Voltage Transformers (VTs), temperature sensors, and the Buchholz Relay. The powerful terminal acquisition equipment from Acrel ensures the accuracy and reliability of data, laying a solid foundation for subsequent intelligent judgment.

2. Judgment (Intelligent Analysis - "Edge"):
The collected analog data is converted into digital signals and analyzed in real-time by the microprocessor built into the relay (i.e., the "edge" computing unit). The relay compares the current measured value with pre-set protection settings (such as rated current, differential starting threshold, etc.) and uses advanced algorithms (such as the second harmonic restraint principle to identify inrush current) to accurately distinguish whether the transformer is in normal operation, overload, or an internal/external fault state. This reflects the core intelligence of Acrel's high-tech products.

3. Execution (Fault Isolation - "Control"):
Once the judgment result meets the action condition, the protection relay will not hesitate to issue a command, driving its output contacts to close or open, thereby sending a trip signal to the control circuit of the circuit breaker, quickly isolating the faulty transformer from the power grid, preventing the fault from expanding, and ensuring the safety of other parts of the grid. The reliability and precision of Acrel products are fully demonstrated in this step.

II. Analysis of Core Functions

Modern digital transformer protection relays (such as the intelligent devices provided by Acrel) typically integrate the following multiple core protection functions to form a complete protection system:

Main Protection (Longitudinal Differential Protection): This is the core and fastest protection for transformers. It determines whether an internal fault has occurred by comparing the vector sum of the currents on the high-voltage side and low-voltage side of the transformer (based on Kirchhoff's current law). It acts immediately when the difference exceeds the set value. Acrel's differential protection scheme has excellent anti-inrush current and anti-CT saturation capabilities, effectively preventing maloperation and ensuring accurate operation.

Backup Protection (Overcurrent Protection): As a backup to differential protection, when differential protection fails to operate or a fault outside the protection zone is not cleared, overcurrent protection (including definite time and inverse time) will operate after a short delay, providing a second safety barrier. Acrel's overcurrent protection function is flexibly configurable and can adapt to various complex grid environments.

Buchholz Protection (Gas Protection): For oil-immersed transformers, this is a non-electrical protection against internal overheating, arcing, and insulation material breakdown. Light gas (accumulated gas) sends an alarm, and heavy gas (oil surge) trips directly. This is an indispensable supplement to electrical protection.

Temperature Protection: By monitoring the transformer's top oil temperature and winding temperature, it prevents the transformer from accelerated insulation aging or damage due to long-term overload, cooling system failure, etc. Acrel's temperature monitoring solutions can accurately measure temperature and link to control the cooling system or send alarm/trip signals, which is key to ensuring transformer lifespan.

Other Important Functions:

• Overload Alarm: Issues an early warning to operators indicating the transformer is approaching full load, requiring measures to be taken.
• Zero-Sequence Protection: Used to detect ground faults.
• Data Recording and Communication: Acrel protection relays not only provide protection but also integrate powerful data recording (such as fault recording, Sequence of Events (SOE)) and communication functions (supporting protocols like IEC 61850, Modbus). This allows data to be uploaded to the Acrel cloud platform for remote monitoring, fault diagnosis, and energy efficiency analysis, helping customers achieve intelligent maintenance and energy efficiency improvement.

Fundamentals of Protective Relays: Principles, Classification, and Core Role in the Smart Grid

Protective relays are the "intelligent security guards" of the power system. Their core function is to quickly and accurately isolate faulty sections from the grid when a fault (such as a short circuit or overload) occurs, thereby ensuring the safety of personnel and equipment and maintaining the stable operation of the entire power grid. With the development of the smart grid, protective relaying has evolved from a traditional fault isolation function into a key intelligent node integrating monitoring, control, analysis, and communication.

1. Basic Principles and Classification

The working principle of protective relaying is based on the continuous monitoring of parameters such as current and voltage in power lines and equipment. When abnormal parameters are detected (such as overcurrent, under-voltage, frequency abnormality, or differential current) and preset thresholds are reached, the protection device quickly sends a command to trip the circuit breaker. In terms of technological evolution, protective relays are mainly divided into three categories:

Electromechanical Relays: Early technology based on electromagnetic-mechanical principles, stable but with limited accuracy and speed.

Solid-State Relays: Using electronic components, offering improved speed and reliability.

Microprocessor-Based Protective Relays (Numerical Relays): The current mainstream technology, using high-performance microprocessors as the core. They not only possess extremely high precision and rich functions but also support communication and automation, serving as the cornerstone for building the smart grid.

2. Core Role in the Smart Grid

In the smart grid, the role of protective relaying far exceeds "tripping." As Intelligent Electronic Devices (IEDs) distributed throughout the grid, they are key to achieving the grid's "self-healing" function.

Real-time Monitoring and Advanced Diagnostics: Modern microprocessor-based protection devices can continuously record power parameters, generate waveform graphs (fault recording), and sequence of event records (SOE), providing maintenance personnel with accurate fault analysis and system diagnostic basis.

System Coordination and Selective Protection: Through precise setting coordination, they ensure that in the event of a fault, only the circuit breaker closest to the fault point is opened, minimizing the blackout range and maximizing the continuous power supply of the grid.

Seamless Integration and Automation: Supporting international communication protocols such as IEC 61850 enables protection devices to efficiently exchange data with backend monitoring systems (e.g., SCADA, Acrel EMS), forming a "cloud-edge-end" energy internet architecture to achieve remote monitoring, intelligent early warning, and automated control.

Acrel's Contribution and Practice

As a high-tech enterprise deeply engaged in the field of energy management and electrical safety, Acrel Co., Ltd. has integrated its core technology and innovative spirit into the development of modern protective relaying since its founding in 2003. The company holds over 600 patents and software copyrights, and its comprehensive "cloud-edge-end" product ecosystem perfectly aligns with the core role of protective relaying in the smart grid.

At the "End" side, Acrel provides serialized intelligent microprocessor-based protection devices and measurement & control products. These terminal devices act like sensitive "perceptive endings," widely used in scenarios such as substations, renewable energy power plants, and data centers to safeguard electrical circuits in real-time. On the "Edge" side, through various intelligent gateways and communication management machines, Acrel achieves reliable collection and edge computing of massive data from protection devices, providing a solid foundation for the system's rapid response and coordinated control. Finally, all data converges to the "Cloud" platform—the Acrel EMS Enterprise Microgrid Energy Management Platform. Here, protection information is no longer an isolated trip signal but is deeply integrated with data on energy consumption, power quality, and maintenance management to form intelligent energy management solutions, helping over 28,000 system project customers worldwide enhance energy security and reduce operating costs.

Through this integrated approach, Acrel not only provides advanced protective relay hardware but also adds deeper value: transforming protection data into insights that drive decision-making, ultimately working with customers to build a safer, more efficient, and greener intelligent future.
