How to Choose the Right Meter Installation Method?

A Guide to DIN Rail / Panel-Mount Selection

Introduction:

In power distribution design, energy consumption retrofitting, photovoltaic energy storage, and building sub-metering projects, many selection mistakes stem from choosing the wrong installation method! Insufficient cabinet space, inability to drill holes, no available mounting wall on-site, and difficult post-installation maintenance — at best, it leads to rework and rectification; at worst, it jeopardizes project acceptance.

Acrel smart meters are divided into two mainstream installation types — DIN rail and panel-mount — based on on-site construction conditions, cabinet structure, and installation environment. This article guides engineering professionals through precise selection from five dimensions: installation features, applicable scenarios, core advantages, corresponding models, and common pitfalls to avoid, covering 99% of industrial and commercial power distribution projects.

I. DIN Rail Meters | Top Choice for Dense In-Cabinet Installation, Maximum Versatility

DIN rail meters are currently the most widely used and most adaptable type in power distribution, new energy, and energy monitoring projects. They adopt the national standard DIN 35mm rail snap-on installation, requiring no cabinet drilling, with extremely simple assembly and disassembly.

 Installation Features

Directly clipped onto standard rails inside distribution boxes, control cabinets, and combiner boxes. Compact and lightweight, with a modular design that supports dense arrangement of multiple units. Adding, replacing, or expanding units later requires no modification to the cabinet structure, ensuring extremely high construction and maintenance efficiency.

Single-Phase DIN Rail Meters (ADL200 Series)

Designed for single-phase AC low-voltage networks, measuring voltage, current, power, and active energy. Supports direct connection up to 80A, with optional RS485 communication (Modbus-RTU protocol). Ideal for building energy sub-metering, commercial tenant billing, and single-phase load monitoring.

Figure: Single-Phase DIN Rail Meter (ADL200)

Three-Phase DIN Rail Meters (ADL400 / DTSD1352 Series)

Full three-phase electrical parameter measurement including voltage, current, power, power factor, frequency, and four-quadrant energy. Supports multi-tariff billing with up to 4 time zones and 8 schedules. Features 2nd–31st harmonic detection and THD analysis. Equipped with RS485 communication interface for SCADA and energy management system integration.

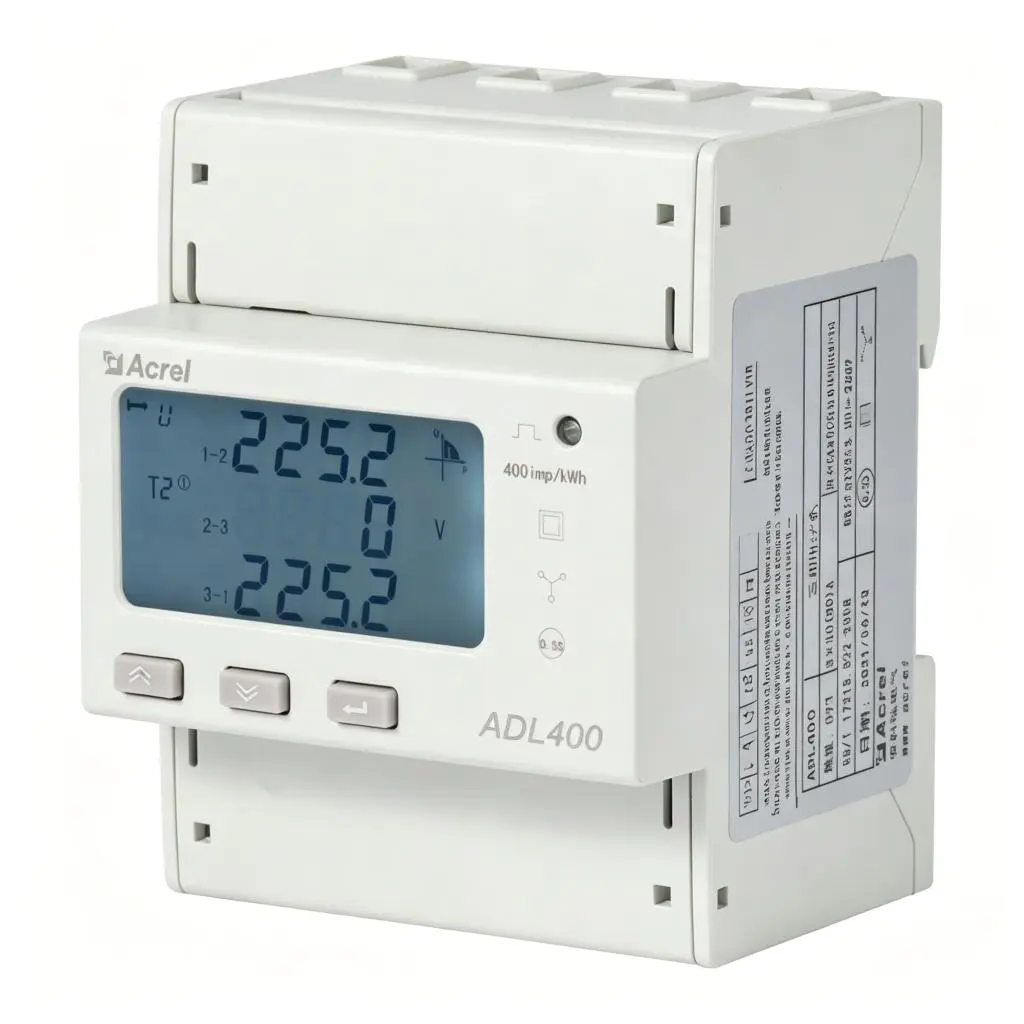

Figure: Three-Phase DIN Rail Meter (ADL400)

DC DIN Rail Meters (DJSF1352-RN Series)

Specifically engineered for DC systems, measuring DC voltage, current, power, and forward/reverse energy. Supports both shunt and Hall sensor current collection, with Class 0.5 accuracy available. CE and UL dual certified for export compliance. Perfectly suited for EV charging stations, energy storage systems, telecom base stations, and DC power distribution panels. Features RS485 communication with Modbus and DL/T645 protocol support, plus data freeze and event logging functions.

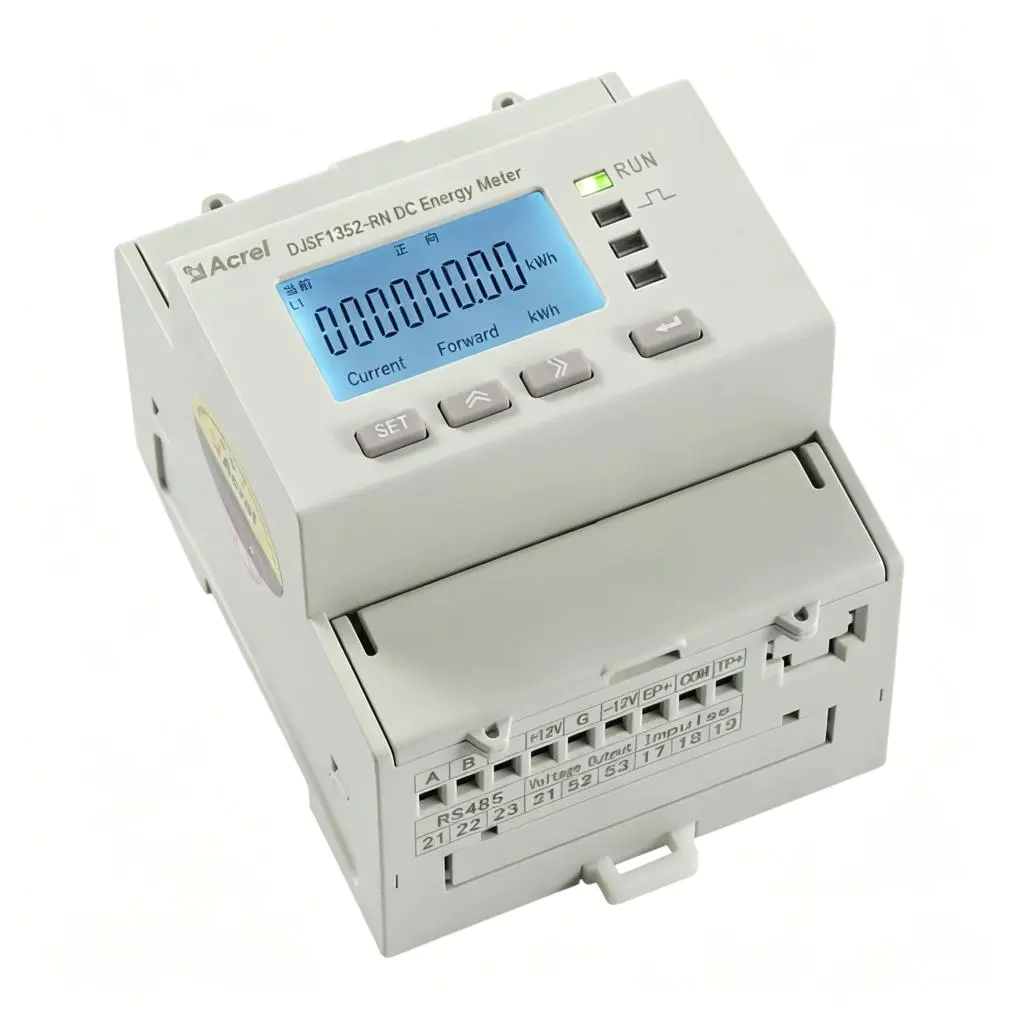

Figure: DC DIN Rail Meter (DJSF1352-RN)

Multi-Circuit DIN Rail Energy Meters (ADF400L / ADW2xx Series)

One meter replaces multiple traditional meters — supports up to 12 three-phase circuits or 36 single-phase circuits with full electrical parameter measurement per channel. Modular design with external CTs, enabling centralized metering and dense deployment in distribution boxes, column head cabinets, and box-type substations. Includes multi-tariff energy statistics, demand measurement, and event recording. Equipped with Ethernet and RS485 dual communication ports for efficient data integration.

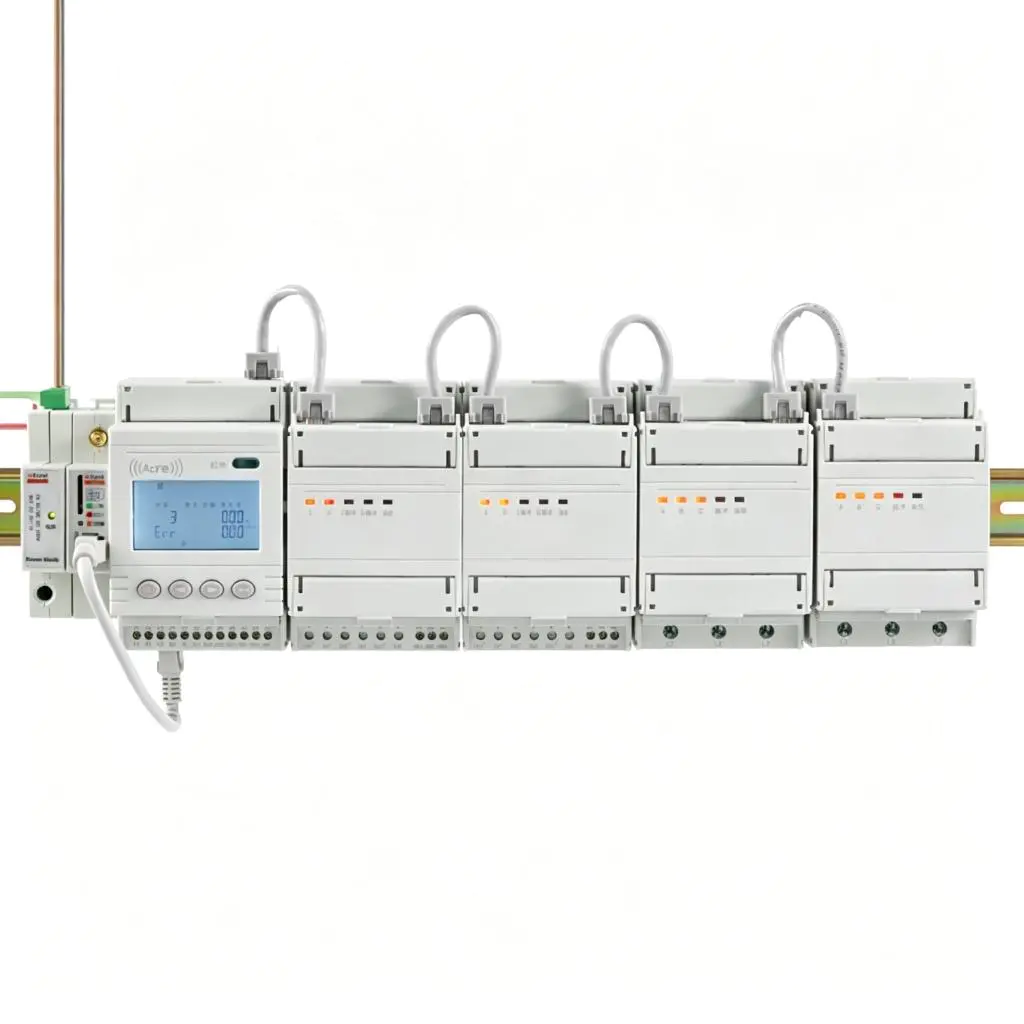

Figure: Multi-Circuit DIN Rail Energy Meter (ADF400L)

II. Panel-Mount Meters | Visual Monitoring for Switchgear, Standard for High-End Projects

Panel-mount meters, also known as front-panel or flush-mount meters, require precise hole cutting on the cabinet panel. The meter body is embedded inside the cabinet with the screen exposed on the outside. They are the mainstream choice for high and low voltage switchgear and central control equipment, combining aesthetics with high-performance monitoring.

Installation Features

Holes are cut in the cabinet according to the meter dimensions for flush fixed installation. The panel surface is flat and uniform, with the screen facing the operator directly, allowing real-time and intuitive viewing of three-phase voltage, current, power, power quality, and other data.

72mm Panel-Mount Meters (AMC72L / PZ72 / AEM72 Series) — Cutout: 67×67mm

Compact 72×72mm panel design with 67×67mm cabinet cutout. Measures three-phase voltage, current, active/reactive power, power factor, frequency, and four-quadrant energy. Supports multi-tariff billing with 4 time zones. Features 2nd–31st harmonic THD measurement, event recording, demand and maximum/minimum value statistics. Equipped with RS485 communication (Modbus-RTU), plus optional digital inputs and relay outputs for remote signaling and control. Ideal for compact switchgear and distribution panels where space is limited.

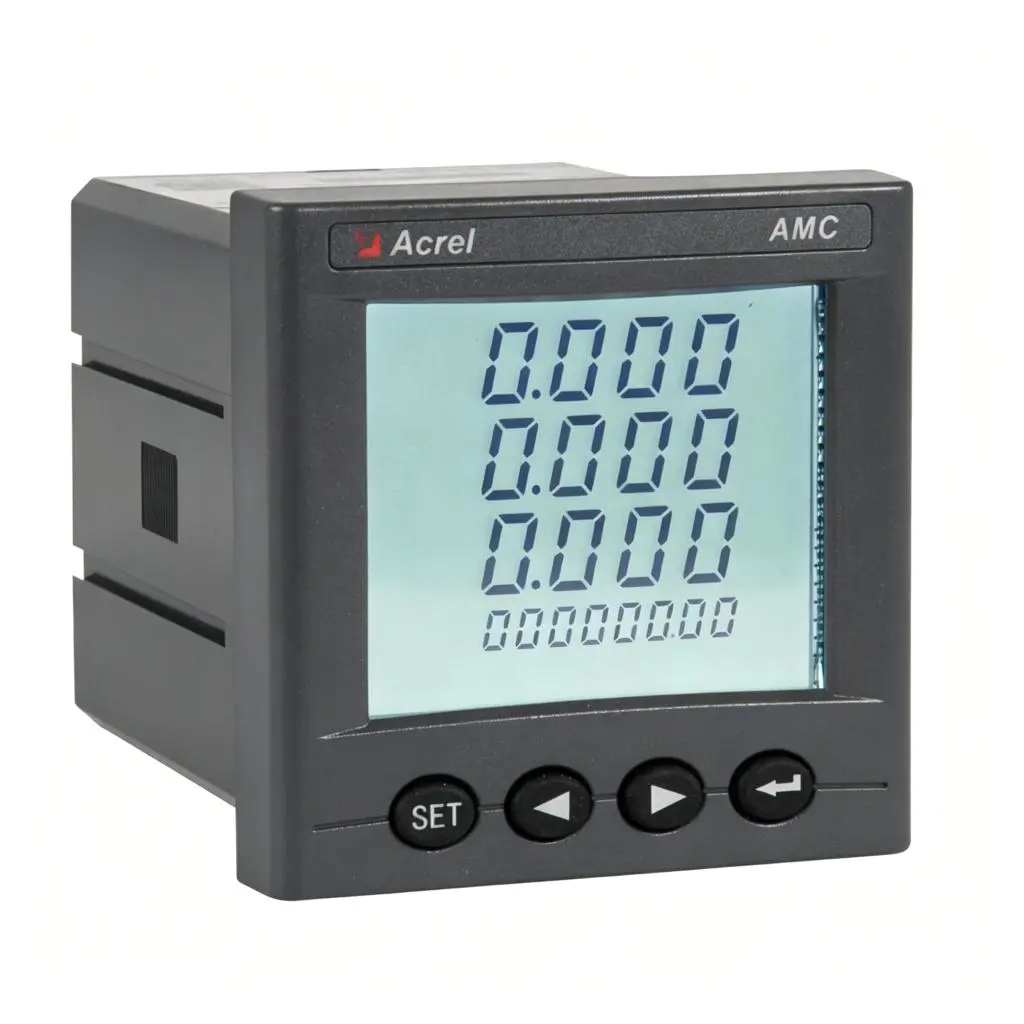

Figure: 72mm Panel-Mount Meter (AMC72L)

96mm Panel-Mount Meters (AMC96L / PZ96 / AEM96 / ACR Series) — Cutout: 88×88mm

96×96mm panel design with 88×88mm cabinet cutout — the flagship panel-mount series with the most comprehensive feature set. Provides high-precision full electrical parameter measurement including detailed power quality analysis (harmonics up to 63rd, voltage/current unbalance, flicker). Supports multi-tariff energy management with up to 12 months of historical data logging. Features multiple I/O options (digital inputs, relay outputs, analog outputs), RS485 communication, and optional Ethernet connectivity. The ACR series adds advanced network power analysis capabilities. Designed for high-end switchgear, MV/LV distribution panels, and critical power monitoring applications.

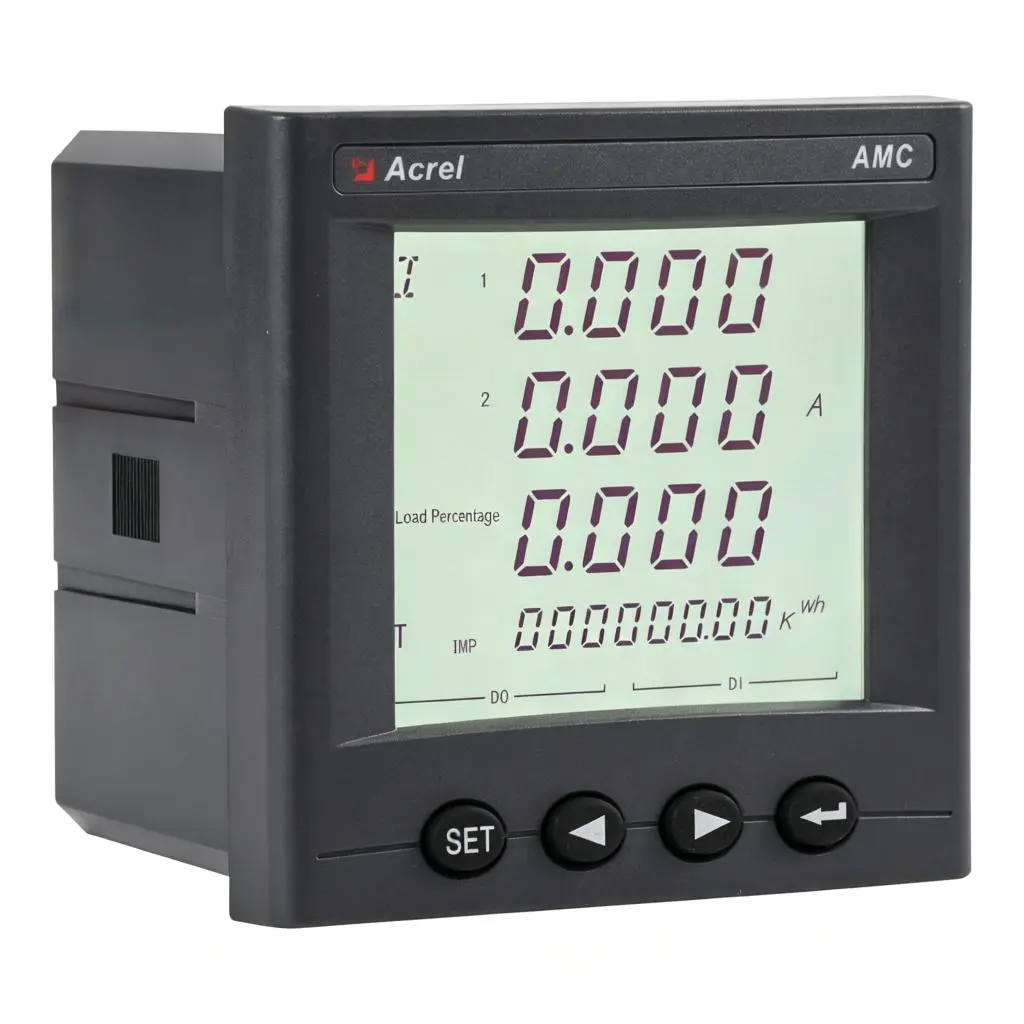

Figure: 96mm Panel-Mount Meter (AMC96L)

III. Quick Selection Summary | Lock in the Right Meter in 30 Seconds

When selecting a meter, determine the installation method first, then the functions, parameters, and certifications! Precise selection based on on-site cabinet conditions, installation environment, and project standards fundamentally avoids problems such as hole-drilling rework, installation limitations, and acceptance failures.
