GarudaFood Factory Energy Monitoring System Project
GarudaFood Factory Energy Monitoring System Project
GarudaFood, a leading Indonesian food and beverage manufacturer, produces high-quality products for consumers nationwide. With 10 factories across Indonesia, the company required a centralized energy monitoring solution to track consumption and optimize operational costs.
Acrel implemented a cost-effective solution featuring:
- Multi-circuit three-phase energy meters
- LoRa and WiFi gateways
- Cloud-based IoT platform
This system enables real-time, centralized energy monitoring across all facilities. The total project investment was approximately US$100,000.
Project Location: Jakarta, Indonesia
Project Products: ADW210-4S multi-circuits 3 phase energy meter+AWT100-LoRa+AWT100-WF gateway & Acrel IoT Platform
- Project Overview
-
Related Solutions and Products
Solutions: Products:

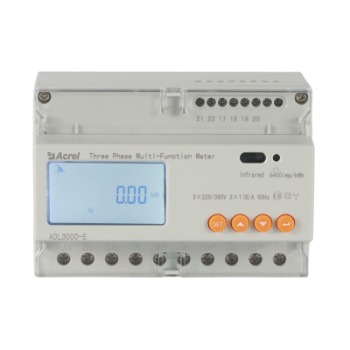

Energy Efficiency Management ADL400 AC Three Phase Energy Meter ADL3000-E AC Multi-Function Energy Meter

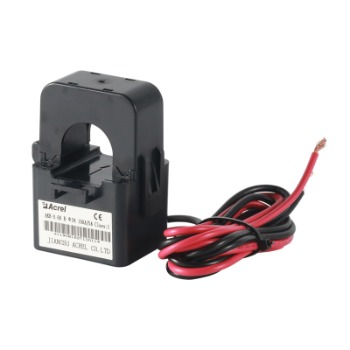

IoT Energy Management Solution AKH-0.66/K 5A Current Transformer AWT100 Smart Data Transmission Unit
Customer Pain Points
1. Multiple factory subsystems cannot connect to the headquarters system through a unified port:
Due to the need for headquarters to calculate production costs, the quickest way is to directly obtain them from the factory SCADA system. However, as multiple factories have multiple SCADA systems, ports need to be customized, which is not conducive to centralized management
2. Excessive electricity consumption:Due to the inability of the factory to monitor the electricity consumption of each circuit in real time, many loads have increased their electricity consumption due to aging, which increases production costs and sometimes even exceeds the load
Acrel Solution
Hardware:
ADW210-4S multi-circuits 3-phase energy meter
• Supports 4 circuits, three-phase electrical parameter monitoring with alarms for phase loss and phase imbalance, it will save much panel space and reduce the cost of energy meter

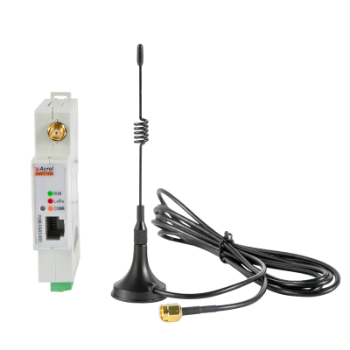

AWT100-LoRa,AWT100-WF gateway
• Help RS485 energy meter to have LoRa or WIFI communication, 1 pc gateway max can connect 30 pcs energy meter

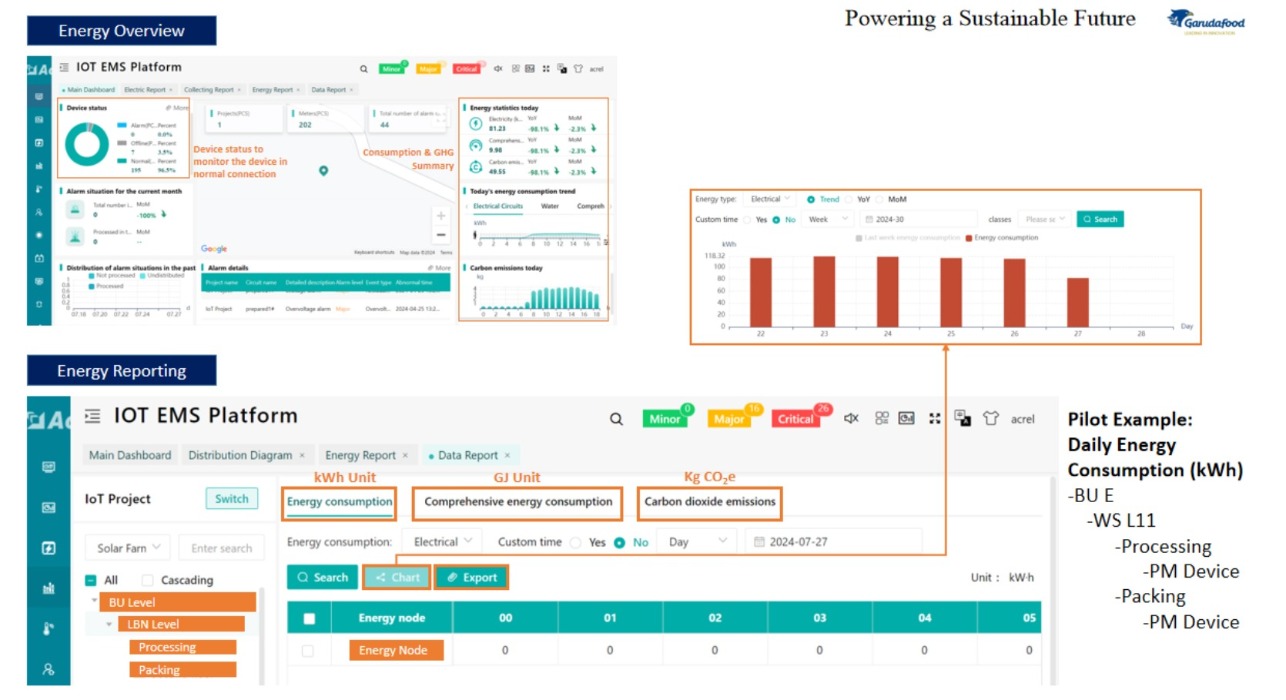

Software: Acrel IoT Energy Management Platform
• Enables centralized monitoring of all project meters with real-time data visualization
• Provides voltage and current trend analysis, and intelligent fault alarm notifications
• Supports multi-level user access and device geolocation mapping
• Supports 10 factories energy power monitoring in only 1 platform
Details
- Increase cost accounting efficiency and reduce error rates
- 10 factories are uniformly supervised by the headquarters
- Reduced labor costs and increased maintenance speed after equipment failure
As the first food factory in Indonesia to introduce the Acrel cloud platform, it has achieved energy conservation and emission reduction through precise energy monitoring and calculation, greatly reducing costs and sparking a wave of reform in Indonesian food factories, becoming a benchmark for enterprise management in the Indonesian food industry

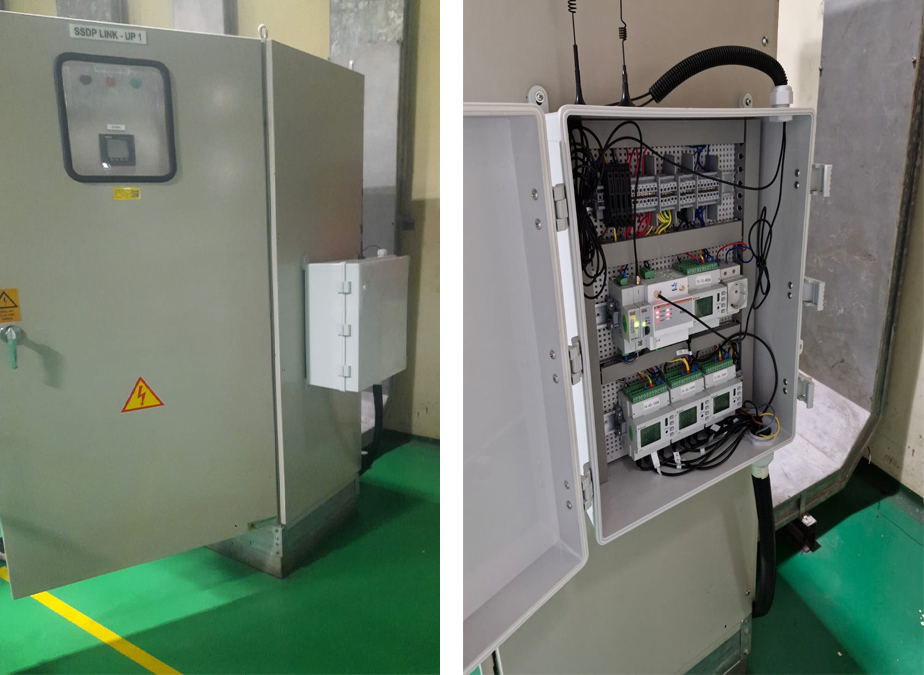

Flied Installation:
