Acrel Unveils Comprehensive Medical IT System Solutions for Healthcare Electrical Safety
Overview
Acrel Medical IT System aligns with two major international standard frameworks. For markets following IEC 60364-7-710—including Europe, China, Brazil, and Russia—the system employs Insulation Monitoring Devices (IMD) to continuously track insulation resistance to ground. For regions adhering to NFPA99 standards, such as the United States, Japan, and Canada, the solution monitors combined capacitive and resistive leakage currents using Line Isolation Monitors (LIM). This dual-design approach ensures global compliance and market adaptability.
Complete Product Ecosystem for Critical Care
The integrated solution comprises six core components:
-
AIM-M Series Medical Insulation Monitors: Available in multiple configurations with RS485 and CAN communication protocols
-
AITR Series Medical Isolation Transformers: Delivering 3.15kVA to 10kVA capacity with >96% efficiency and <40dB operational noise
-
AIL Series Insulation Fault Locators: Capable of pinpointing faults across 4 to 48 circuits within 10 seconds
-
AID Series Alarm Display Units: Supporting centralized monitoring for 1 to 30 devices via networked connectivity
-
HDR-60-24 Instrument Power Supplies: Providing stable DC power for system components
-
AKH-0.66P26 Current Transformers: Precision measurement for accurate fault detection
Tailored Solutions for Healthcare Applications
Engineered for IEC 60364-7-710:2021 specified locations, the system serves:
-
Operating rooms and post-operative recovery units
-
Intensive Care Units (ICU/CCU)
-
Cardiac catheterization laboratories
-
Neonatal intensive care facilities
-
Intermediate care wards
Flexible Configuration Packages

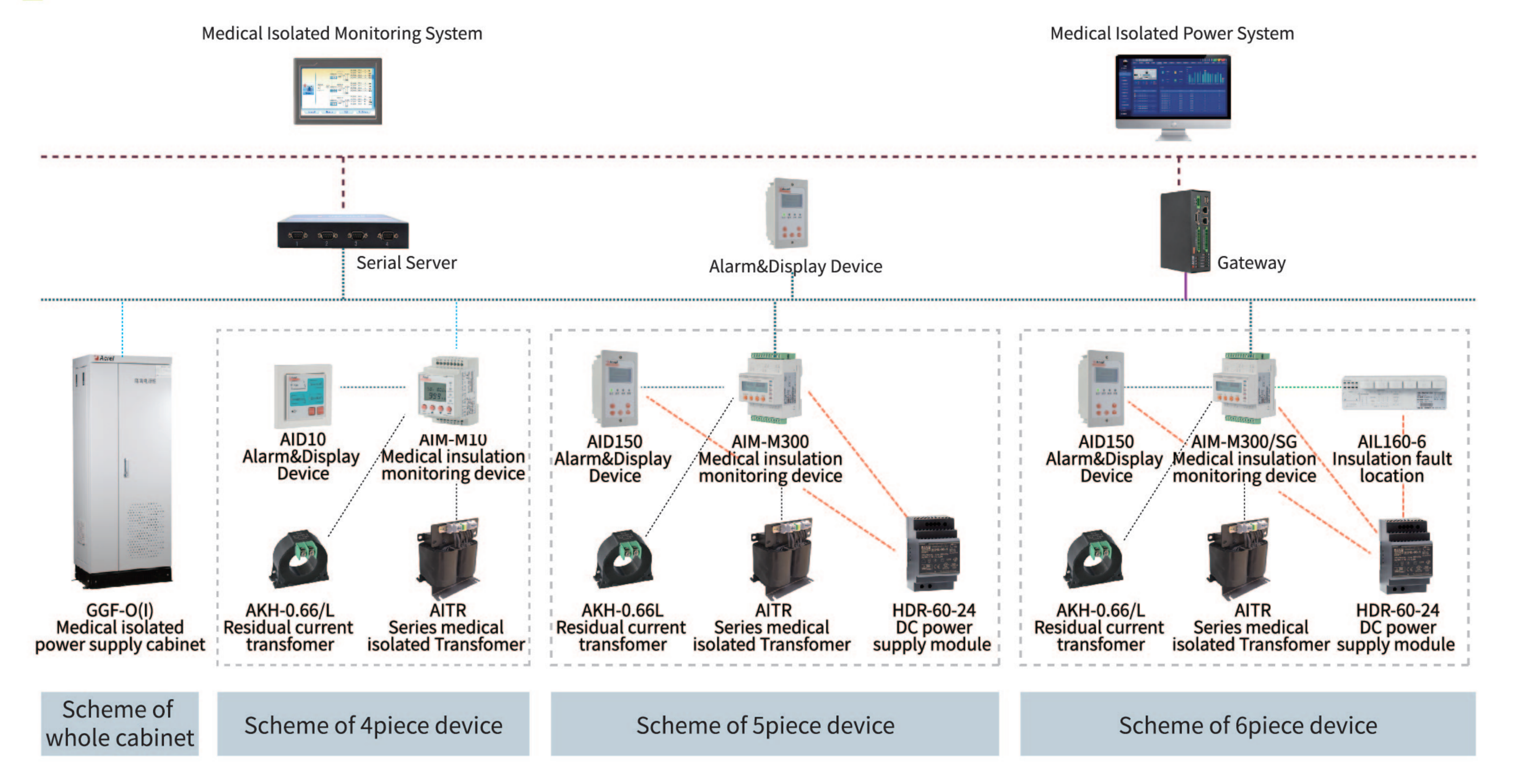

Acrel offers three standardized configuration bundles to streamline implementation:
-
Four-Piece Package: Essential isolation and monitoring components
-
Five-Piece Package: Adds instrument power supply for enhanced stability
-
Six-Piece Package: Includes advanced fault location capabilities for rapid troubleshooting
The operating room configuration features the AITR8000S isolation transformer paired with AIM-M300/SG monitor and AID150 display, while ICU deployments leverage AID200 units for CAN bus-based centralized monitoring across multiple systems.
Advanced Technical Specifications
The AITR isolation transformers feature H-class insulation materials, double-winding construction, and withstand 4200V/min dielectric strength testing. AIM-M300 monitors provide comprehensive insulation, overload, and temperature monitoring with programmable relay outputs. The fault location system operates effectively with system leakage capacitance up to 35μF and insulation resistance ranges from 1kΩ to 2MΩ.
All products carry CE and IEC certifications, meeting IEC 61558-2-15, IEC 61557-8, and IEC 61557-9 standards for medical IT applications.
