Acrel Launches Next-Generation Smart Energy Meters for Europe's Booming Balcony Solar and Home Storage Markets

03 04, 2026

Advanced ADL200W/ADL400W Series Features Industry-First Automatic Phase Sequence Adjustment, 1P Miniature Design, and Wireless Debugging Capabilities

---

Acrel Unveils Game-Changing Energy Meter Solutions Optimized for European Renewable Energy Transition

Acrel Co., Ltd., a leading innovator in smart energy management solutions, today announced the European market launch of its ADL200W and ADL400W Series intelligent energy meters, specifically engineered to support the continent's rapidly expanding balcony photovoltaic (PV) and residential energy storage markets. These cutting-edge devices combine ultra-compact 1P (18mm) width design, automatic phase sequence correction technology, and seamless wireless connectivity to address the unique installation challenges of modern distributed solar systems.

As European nations accelerate their renewable energy adoption under the European Green Deal and REPowerEU Plan, Acrel's new meter series delivers the precision measurement, rapid anti-reflux protection, and installation flexibility that installers and system integrators demand for next-generation residential solar applications.

---

European Policy Landscape: Regulatory Momentum Driving Balcony Solar Adoption

The European balcony solar market is experiencing unprecedented growth, fueled by progressive regulatory frameworks across major EU markets:

Germany: Leading the Plug-and-Play Revolution

Germany's Solarpaket I legislation has positioned the country as Europe's balcony solar pioneer. Key regulatory advancements include :

- 800W AC output limit for simplified registration (increased from 600W in 2024)

- 2,000W DC panel capacity allowance with inverter power curtailment

- Streamlined MaStR registration requiring only basic system notification within one month of commissioning

- Legalization of Schuko plug connections for true plug-and-play installation

- Tenant protection laws granting renters the right to install balcony PV systems without landlord approval in most cases

- 0% VAT rate on mini-solar systems and regional subsidies up to €500 per installation

France: Simplified Permitting and Tax Incentives

France has implemented a "zero-approval" process reducing administrative delays to just seven days for systems under 800W :

- 5.5% VAT rate (reduced from 20%) for energy transition equipment

- Up to €500 subsidies for certified balcony solar systems, with higher support for low-income households

- CEI 0-21 and EN 50549-1 compliance requirements ensuring grid safety

- Net metering (Scambio sul Posto) for surplus energy compensation

Italy: Tax Credits and "Free Construction" Policy

Italy's Superbonus 2024 program offers exceptional financial incentives :

- 110% tax credit for balcony PV systems bundled with energy efficiency upgrades (distributed over 5 years)

- 50% Ecobonus deduction for independent installations

- 800W exemption from building permit requirements

- "Free construction" policy eliminating approval needs for sub-800W systems

Belgium, Austria, and Emerging Markets

- Belgium: Legalized balcony PV in April 2025 under Synergrid C10/11 safety standards with plug-and-play approval

- Austria: 50% cost subsidies and "tacit consent" principles for apartment building installations

- Spain: 15-minute grid connection pledge and 15% production subsidies for domestic content

These regulatory tailwinds have created a €13.2 billion market opportunity across Europe, with industry projections indicating balcony solar could account for 40% of distributed solar capacity by 2030.

---

ADL200W/ADL400W Series: Technical Excellence for Modern Solar Applications

The Acrel W Series represents a paradigm shift in residential energy metering, addressing the three critical pain points of balcony solar installation: space constraints, wiring complexity, and commissioning efficiency.

Revolutionary 1P (18mm) Unified Width Design

Unlike conventional meters requiring 2.5P or more space, both single-phase (ADL200W) and three-phase (ADL400W) models occupy just 18mm (1P) width on DIN rail—the industry's most compact form factor. This unified design:

- Maximizes panel space utilization in crowded residential distribution boards

- Enables seamless retrofitting into existing electrical infrastructure

- Reduces inventory complexity for installers

Industry-First Automatic Phase Sequence Adjustment

Acrel's patented Phase Sequence Auto-Correction technology eliminates the most common installation error source in three-phase systems. When installers incorrectly connect voltage phases (ABC sequence errors), current transformer orientation, or load direction, the meter's intelligent algorithm:

1. Automatically detects wiring anomalies through internal phase angle analysis
2. Identifies specific error types(voltage phase swap, CT reverse polarity, load direction reversal)
3. Provides correction recommendations to the inverter via communication protocol
4. Executes software-based phase adjustment without requiring physical rewiring

This innovation reduces installation time by up to 40% and eliminates costly callback visits for phase correction.

Tool-Free Installation with Plug-and-Play Connectivity

The W Series introduces push-in voltage terminals requiring no screwdriver tightening—installers simply insert conductors and the spring-cage mechanism ensures reliable contact. Current transformers feature:

- Integrated RJ12 connectors with color-coded (yellow/green/red) polarity marking

- Plug-and-play CT design eliminating terminal screw torque verification

- Pre-wired harness options for rapid field deployment

Wireless Debugging and Cloud Integration

Supporting both WiFi and Bluetooth commissioning, the W Series enables:

- Smartphone-based configuration via inverter OEM apps

- Over-the-air firmware updates for future-proofing installations

- Direct cloud platform integration for remote monitoring and diagnostics

- WiFi-Halow (WFH Series) long-range wireless option for challenging installation environments with superior wall penetration and extended range capabilities

High-Speed Measurement for Anti-Reflux Protection

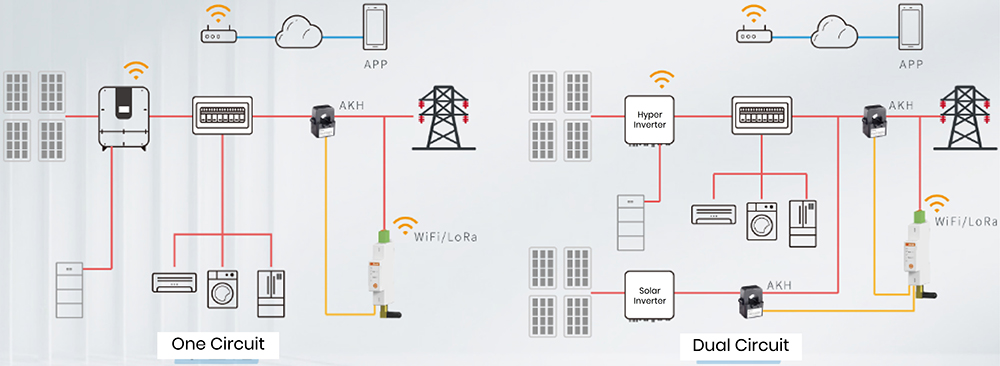

With 50ms power refresh rates, the ADL200W/ADL400W Series provides the rapid response times required for modern anti-reflux (zero-export) systems. Dual-channel measurement configurations enable:

- Channel 1: Anti-reflux monitoring with real-time power direction detection

- Channel 2: Existing PV system production monitoring for hybrid installations

WFH Series: WiFi-Halow Technology for Complex Installations

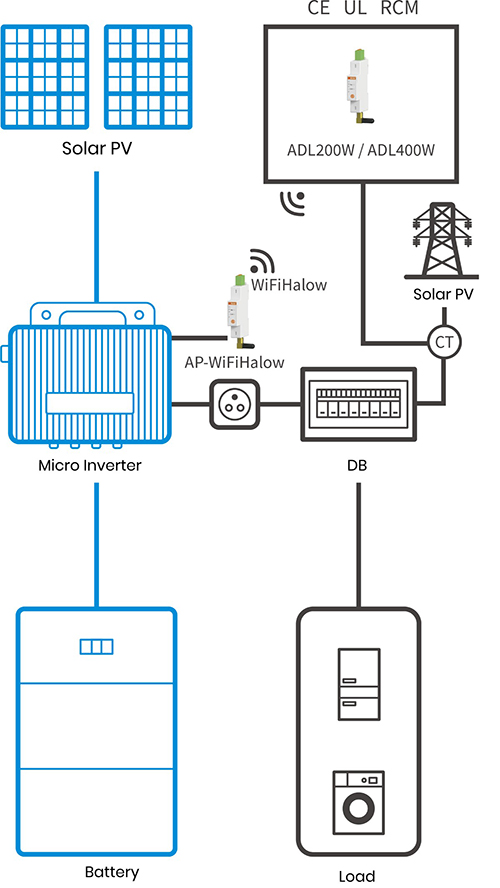

For installations requiring extended wireless range or superior building penetration, Acrel offers the ADL200WFH/ADL400WFH Series featuring WiFi-Halow (IEEE 802.11ah) technology:

Point-to-Point Long-Range Architecture

- Sub-1GHz operation providing 2× range and 3× wall penetration vs. standard 2.4GHz WiFi

- One-to-many networking supporting up to 4 energy meters per Access Point (AP)

- RJ45 RS485 interface on AP unit for seamless inverter integration

- Low power consumption ensuring reliable operation in battery-backed scenarios

This architecture is ideal for multi-floor residential buildings, complex installation environments, and long-distance meter-to-inverter configurations where conventional wireless connectivity proves unreliable.

Comprehensive Certification Portfolio

The Acrel W and WFH Series hold full certification for European market entry:

- CE Marking (EU Directive compliance)

- MID Certification (Measuring Instruments Directive 2014/32/EU)

- TÜV/GS Safety Approval

- RCM Marking (Australia/New Zealand, demonstrating quality standards)

- RoHS 2.0 and REACH environmental compliance

- WEEE Directive registration for electronic waste management

Application Scenarios and System Integration

Balcony PV Systems (Balkonkraftwerk)

The ADL200W single-phase meters are optimized for Germany's 800W and France's 600W balcony solar systems, providing:

- Precise bidirectional energy measurement for net metering

- Rapid anti-reflux response ensuring grid compliance

- Plug-and-play installation enabling DIY-friendly deployment

Residential Energy Storage (Home Storage)

The ADL400W three-phase meters support 10kW+ home storage systems with:

- Dual-channel measurement for hybrid inverter configurations

- Phase-balanced monitoring for three-phase battery inverters

- Integration with leading European inverter brands via Modbus TCP/RTU protocols

Micro-Energy Storage (Balcony Batteries)

Emerging balcony battery systems (2-5kWh capacity) benefit from the W Series' compact footprint and wireless connectivity, enabling apartment dwellers to maximize self-consumption rates beyond standard solar generation profiles.

Product Selection Guide

About Acrel

Acrel Co., Ltd. is a premier manufacturer of smart energy management solutions, specializing in power monitoring systems, energy meters, and electrical safety devices. With over 20 years of innovation in measurement technology, Acrel serves global markets through comprehensive product portfolios spanning residential, commercial, and industrial applications. The company's commitment to intelligent measurement, wireless connectivity, and installer-friendly design positions Acrel as the preferred partner for Europe's energy transition infrastructure.

---

For more information about the ADL200W/ADL400W Series and WiFi-Halow solutions, visit [Acrel Western Europe] or contact our regional sales team.
